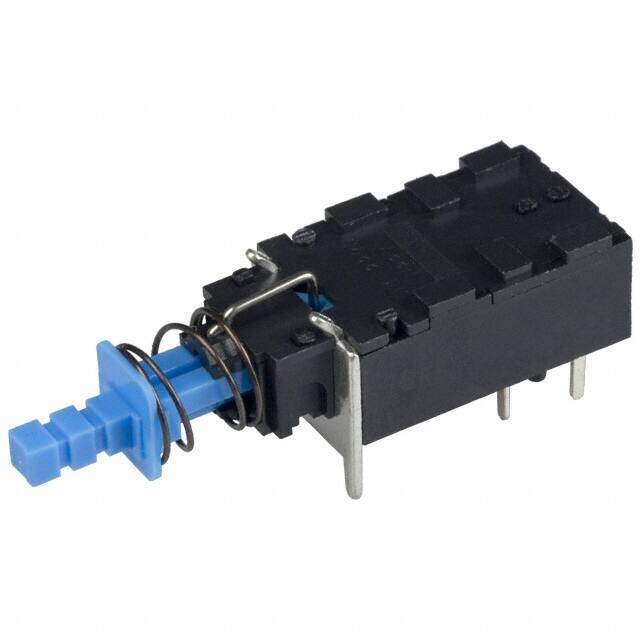

P227EE1CXC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 7A 125V
PDF
/
Buying Options
Total Price: USD $9.06
Unit Price: USD $9.063
≥1 USD $9.063
≥10 USD $8.55
≥100 USD $8.06604
≥500 USD $7.60947
≥1000 USD $7.17874
≥3000 USD $6.7724
Inventory: 2000
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 8.5mm
Body Height 12.3mm
Technical
Operating Force-Max 6.86 N
Contact (DC) Max Rating R Load 7A@125VDC
Contact (AC) Max Rating R Load 7A@125VAC
Contact Current(AC)-Max 7A
Contact Current Rating 7A
Max Voltage Rating (DC) 250V
Electrical Life 6,000 Cycles
Max Voltage Rating (AC) 250V
Contact Current(DC)-Max 7A
Color - Actuator/Cap Blue
Switch Function Off-On
Circuit DPST
Actuator Type Plunger for Cap
Body Breadth 15 mm
Body Length or Diameter 30.8mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 7A
Orientation Right Angle
Current Rating (Amps) 7A AC
HTS Code 8536.50.90.35
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series P227
Published 2012
Packaging Bulk
Operating Temperature -20°C~85°C
Physical
Housing Material PBT
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 10 Weeks
