P16OAT11KREDRED
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

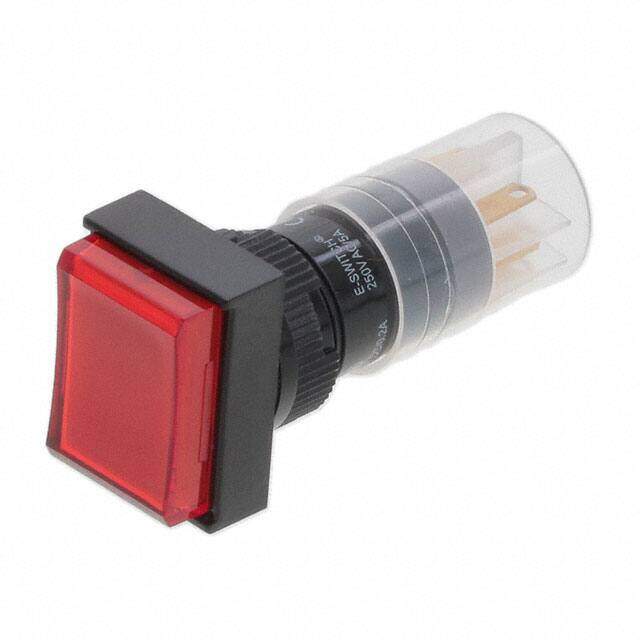

Illuminated Pushbutton Switches ILLUM PUSHBUTTON SPDT 8A 125V
PDF
/
Buying Options
Total Price: USD $22.41
Unit Price: USD $22.4136
≥1 USD $22.4136
≥10 USD $20.35484
≥100 USD $17.724696
Inventory: 161
Minimum: 1
-
+
Technical Details
Technical
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Series P16
Packaging Bulk
Operating Temperature -20°C~55°C
Actuator Travel 2.9972 mm
Contact Voltage(AC)-Max 250V
Hole Diameter 16 mm
Contact (AC) Max Rating R Load 5A@250VAC
Contact Current(AC)-Max 5A
Illumination Type Illuminated, LED
Mechanical Life 100,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 3000VAC V
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 24VDC
Contact Current(DC)-Max 6A
Color - Actuator/Cap Red
Insulation Resistance 1000000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Rectangular, Button
Body Length or Diameter 14.7066mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.110 (2.8mm)
Current Rating 6A
Current Rating (Amps) 8A AC 6A DC
Voltage - Rated DC 24V
Type Standard, Illuminated
Termination Quick Connect
Physical
End Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
Center Contact Material COPPER ALLOY
Housing Material Polyetherimide
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.401 inch
Length - Termination 0.043 inch
