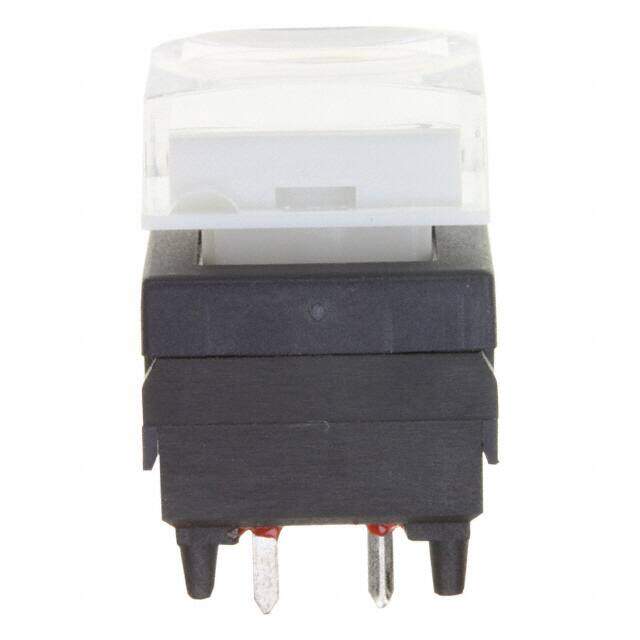

LP6OA2ASRG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPST-NO 12MA 12V
PDF
/
Buying Options
Total Price: USD $6.91
Unit Price: USD $6.908
≥1 USD $6.908
≥10 USD $5.668573
≥100 USD $5.445686
≥500 USD $4.553982
Inventory: 1172
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 13.2mm
Technical
Operating Force-Max 2.94 N
Contact (DC) Max Rating R Load .012A@12VDC
Illumination Color Green, Red
Illumination Type LED
Mechanical Life 200,000 Cycles
Throw Configuration DPST
Electrical Life 200,000 Cycles
Illumination Type, Color LED, Red/Green
Illumination Voltage (Nominal) 1.95 2VDC
Contact Current(DC)-Max 0.012A
Color - Actuator/Cap Clear
Switch Function Off-Mom
Circuit DPST-NO
Actuator Type Square, Button
Body Breadth 15.6 mm
Body Length or Diameter 15.6mm
Termination Style PC Pin
Current Rating 12mA
Current Rating (Amps) 12mA DC
Voltage - Rated DC 12V
HTS Code 8536.50.90.31
Type Standard, Illuminated
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LP6
Published 2008
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
