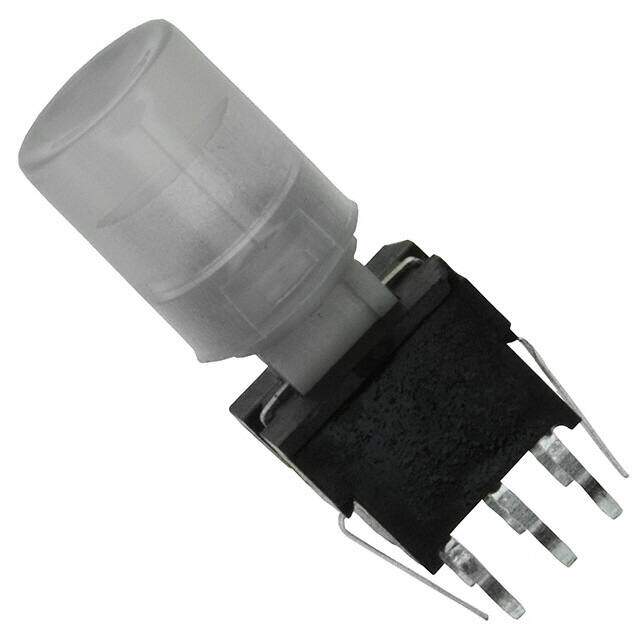

LP4OA1PBCTY
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.1A 30V
PDF
/
Buying Options
Total Price: USD $3.45
Unit Price: USD $3.4496
≥1 USD $3.4496
≥10 USD $3.08176
≥100 USD $2.919488
≥500 USD $2.81629
≥1000 USD $2.66889
≥3000 USD $2.550918
Inventory: 978
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2009
Series LP4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Current Rating 100mA
Termination Style PC Pin
Body Length or Diameter 8.7122mm
Body Breadth 7.493 mm
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Clear
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 2.2VDC
Illumination Type, Color LED, Yellow
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50000 Cycle(s)
Mechanical Life 50,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Yellow
Hole Diameter 8.2 mm
Contact (DC) Max Rating R Load 0.1A@30VDC
PCB Hole Count 8
Actuator Travel 1.4986 mm
Dimensions
Body Height 7.2898mm
Length - Termination 0.138 inch
Compliance
RoHS Status ROHS3 Compliant
