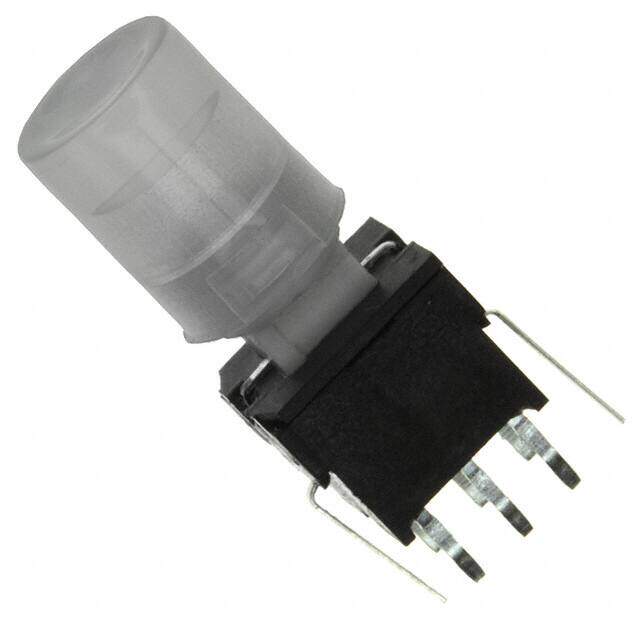

LP4OA1PBCTW
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.1A 30V
PDF
/
Buying Options
Total Price: USD $4.04
Unit Price: USD $4.036034
≥1 USD $4.036034
≥10 USD $3.80758
≥100 USD $3.592048
≥500 USD $3.388732
≥1000 USD $3.196913
Inventory: 986
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.488 inch
Length - Termination 0.138 inch
Body Height 7.2898mm
Technical
Body Color BLACK
Actuator Travel 1.4986 mm
PCB Hole Count 8
Contact (DC) Max Rating R Load 0.1A@30VDC
Hole Diameter 8.2 mm
Illumination Color White
Illumination Type Illuminated, LED
Mechanical Life 50,000 Cycles
Electrical Life 50000 Cycle(s)
Dielectric Withstanding Voltage 500VAC V
Illumination Type, Color LED, White
Illumination Voltage (Nominal) 3.7VDC
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Clear
Insulation Resistance 100000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button
Termination Style PC Pin
Current Rating 100mA
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
Type Standard, Illuminated
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LP4
Published 2009
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
