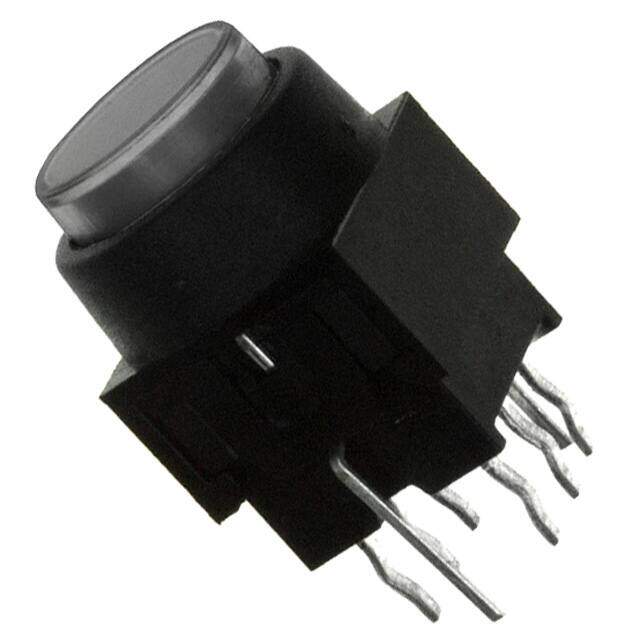

LP4OA1PBBTG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
ESWCH LP4OA1PBBTG Switches > Pushbutton > Round > Illiminated
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6752
≥1 USD $2.6752
≥10 USD $2.38832
≥100 USD $2.262656
≥500 USD $2.068387
≥1000 USD $2.011909
Inventory: 1122
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.138 inch
Body Height 8.0518mm
Technical
Body Color BLACK
Actuator Travel 1.4986 mm
PCB Hole Count 8
Contact (DC) Max Rating R Load 0.1A@30VDC
Hole Diameter 8.2 mm
Illumination Color Green
Illumination Type Illuminated, LED
Mechanical Life 50,000 Cycles
Electrical Life 50000 Cycle(s)
Dielectric Withstanding Voltage 500VAC V
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.3VDC
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Clear
Insulation Resistance 100000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button
Termination Style PC Pin
Current Rating 100mA
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
Type Standard, Illuminated
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LP4
Published 2009
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
