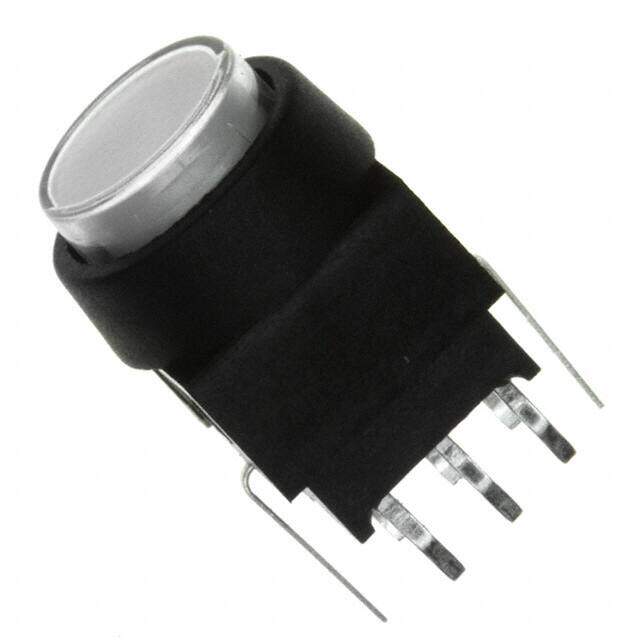

LP4OA1PBBTB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.1A 30V
PDF
/
Buying Options
Total Price: USD $3.8
Unit Price: USD $3.802189
≥1 USD $3.802189
≥10 USD $3.586968
≥100 USD $3.383934
≥500 USD $3.192389
≥1000 USD $3.011686
Inventory: 1169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2009
Series LP4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Current Rating 100mA
Termination Style PC Pin
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Clear
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 3.5VDC
Illumination Type, Color LED, Blue
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50000 Cycle(s)
Mechanical Life 50,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Blue
Hole Diameter 8.2 mm
Contact (DC) Max Rating R Load 0.1A@30VDC
PCB Hole Count 8
Actuator Travel 1.4986 mm
Body Color BLACK
Dimensions
Body Height 8.0518mm
Length - Termination 0.138 inch
Actuator Length 0.214 inch
Compliance
RoHS Status ROHS3 Compliant
