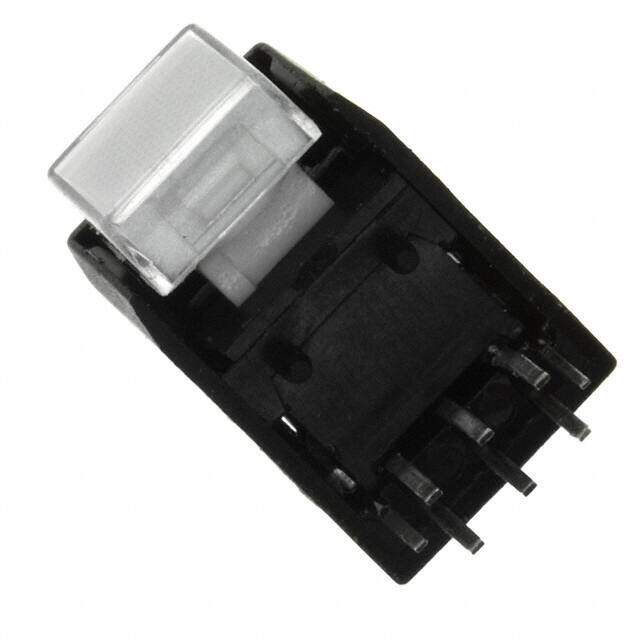

LP4EE1RBATR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.1A 30V
PDF
/
Buying Options
Total Price: USD $2.54
Unit Price: USD $2.543087
≥1 USD $2.543087
≥200 USD $0.984675
≥500 USD $0.95054
≥1000 USD $0.933472
Inventory: 8726
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2009
Series LP4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard, Illuminated
Additional Feature WITH LED
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Current Rating 100mA
Termination Style PC Pin
Body Length or Diameter 10.4902mm
Body Breadth 8.7376 mm
Actuator Type Square, Button
Circuit DPDT
Switch Function On-On
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Clear
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 2.2VDC
Illumination Type, Color LED, Red
Dielectric Withstanding Voltage 500VAC V
Mechanical Life 50,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Red
Hole Diameter 8.2 mm
Contact (DC) Max Rating R Load 0.1A@30VDC
PCB Hole Count 10
Actuator Travel 1.4986 mm
Body Color BLACK
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
