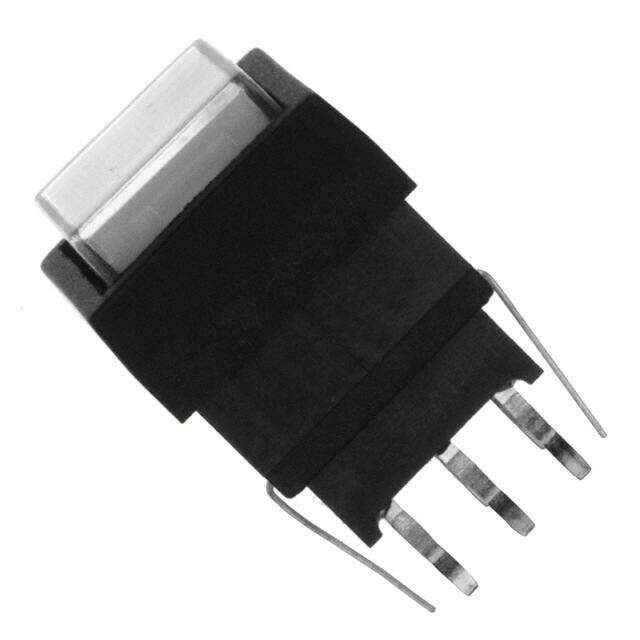

LP4EE1PBATR image
Favorite
LP4EE1PBATR image
Favorite

LP4EE1PBATR

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH DPDT 0.1A 30V
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole

Technical

Operating Temperature -20°C~70°C
Packaging Bulk
Published 2009
Series LP4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard, Illuminated
HTS Code 8536.50.90.33
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Current Rating 100mA
Termination Style PC Pin
Body Length or Diameter 10mm
Body Breadth 10 mm
Actuator Type Square, Button
Circuit DPDT
Switch Function On-On
Color - Actuator/Cap Clear
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 2.2VDC
Illumination Type, Color LED, Red
Mechanical Life 50,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Red
Hole Diameter 8.2 mm
Contact (DC) Max Rating R Load .1A@30VDC
Operating Force-Max 3.43 N

Dimensions

Body Height 11.6mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
