LP1OA1AG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

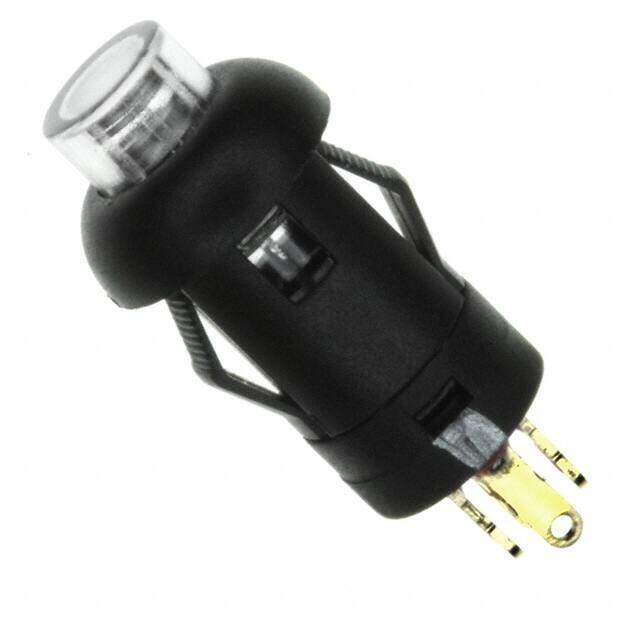

L1 Series SPST Momentary Green LED Panel Mount Illuminated Pushbutton Switch
PDF
/
Buying Options
Total Price: USD $2.84
Unit Price: USD $2.8424
≥1 USD $2.8424
≥10 USD $2.54936
≥100 USD $2.408736
≥500 USD $2.185436
≥1000 USD $2.091505
≥3000 USD $1.926989
Inventory: 816
Minimum: 1
-
+
Technical Details
Technical
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 8.00mm Dia
Contact Resistance 50mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Clear
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 2.2VDC
Illumination Type, Color LED, Green
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 30V
Mechanical Life 50,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Green
Hole Diameter 8.2 mm
Contact (DC) Max Rating R Load .1A@30VDC
Actuator Travel 1.8034 mm
Operating Force-Max 3.43 N
Body Length or Diameter 10mm
Termination Style Solder Lug
Current Rating 100mA
Orientation Straight
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.31
Additional Feature WITH LED
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LP1
Published 2008
Packaging Bulk
Operating Temperature -40°C~85°C
Dimensions
Body Height 12mm
Length - Termination 0.197 inch
Actuator Length 3mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
