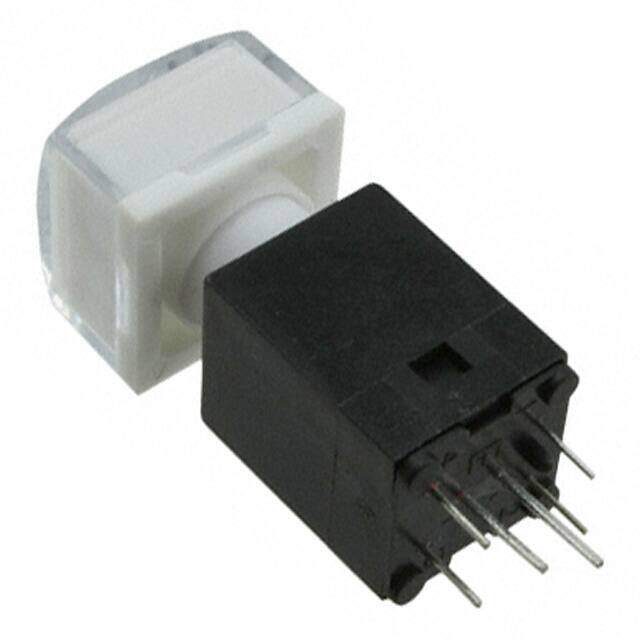

LP16OA1BSTWG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.1A 20V
PDF
/
Inventory: 8865
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000,000 Cycles
Throw Configuration SPST
Illumination Type LED
Hole Diameter 8.2 mm
Contact (DC) Max Rating R Load 0.1A@20VDC
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 3.3VDC
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Clear (White Filter/Diffuser)
Insulation Resistance 10000000Ohm
Contact Resistance 0.15mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Body Breadth 12.2936 mm
Body Length or Diameter 12.2936mm
Termination Style PC Pin
Current Rating 100mA
Current Rating (Amps) 100mA DC
Voltage - Rated DC 20V
Type Standard, Illuminated
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LP16
Published 2010
Packaging Bulk
Operating Temperature -5°C~60°C
Actuator Travel 3.302 mm
Contact Function OFF-(ON)
PCB Hole Count 7
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.559 inch
Length - Termination 0.161 inch
Body Height 17.2974mm
