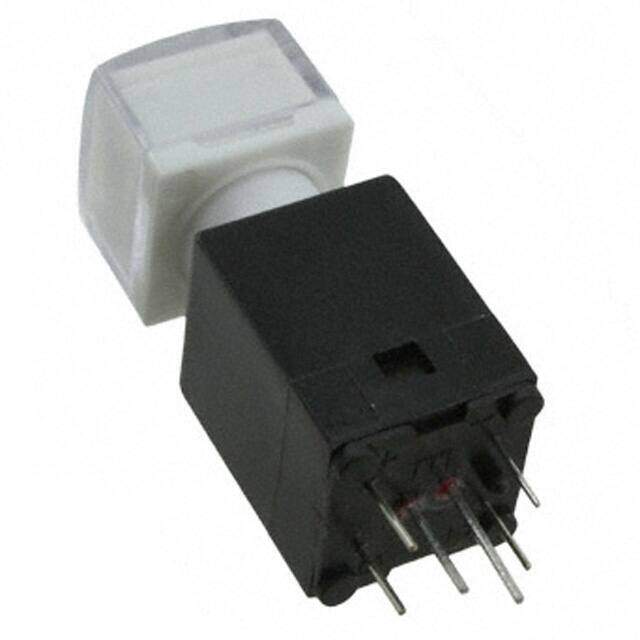

LP16OA1ASTWR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.1A 20V
PDF
/
Buying Options
Total Price: USD $7.34
Unit Price: USD $7.341998
≥1 USD $7.341998
≥10 USD $6.926415
≥100 USD $6.534355
≥500 USD $6.164487
≥1000 USD $5.815556
Inventory: 1156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -5°C~60°C
Packaging Bulk
Published 2010
Series LP16
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard, Illuminated
Voltage - Rated DC 20V
Current Rating (Amps) 100mA DC
Current Rating 100mA
Termination Style PC Pin
Body Length or Diameter 12.192mm
Body Breadth 12.192 mm
Actuator Type Square, Button
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.15mOhm
Insulation Resistance 10000000Ohm
Color - Actuator/Cap Clear (White Filter/Diffuser)
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 1.95VDC
Illumination Type, Color LED, Red
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000,000 Cycles
Throw Configuration SPST
Illumination Type LED
Hole Diameter 8.2 mm
Contact (DC) Max Rating R Load 0.1A@20VDC
PCB Hole Count 7
Contact Function OFF-(ON)
Actuator Travel 3.302 mm
Dimensions
Body Height 17.2974mm
Length - Termination 0.161 inch
Actuator Length 0.559 inch
Compliance
RoHS Status ROHS3 Compliant
