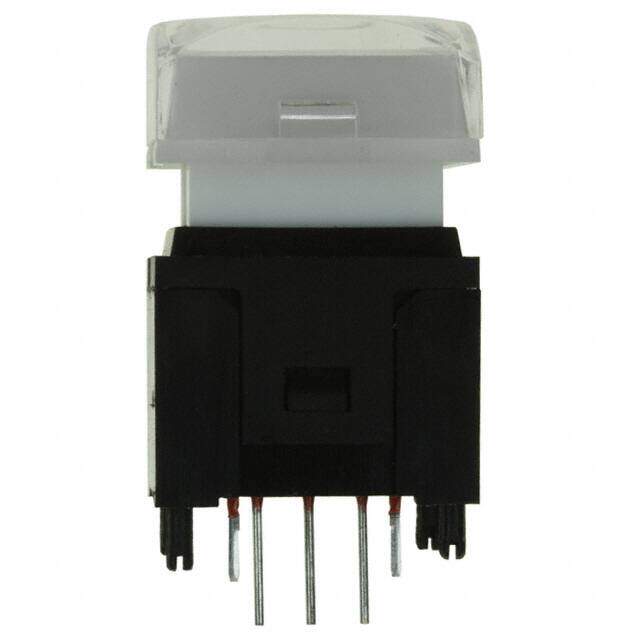

LP11OA1TBSRG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.1A 12V
PDF
/
Inventory: 8889
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.453 inch
Length - Termination 0.142 inch
Body Height 11.5mm
Technical
Operating Force-Max 3.43 N
Actuator Travel 4.4958 mm
Contact Function OFF-(ON)
PCB Hole Count 9
Contact (DC) Max Rating R Load .1A@12VDC
Hole Diameter 8.2 mm
Illumination Color Green, Red
Illumination Type LED
Mechanical Life 1,000,000 Cycles
Throw Configuration SPST
Electrical Life 1,000,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Illumination Type, Color LED, Red/Green
Illumination Voltage (Nominal) 2.2 3.5VDC
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Clear
Insulation Resistance 100000000Ohm
Contact Resistance 0.2mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Body Breadth 15 mm
Body Length or Diameter 15mm
Termination Style PC Pin
Current Rating 100mA
Current Rating (Amps) 100mA DC
Voltage - Rated DC 12V
HTS Code 8536.50.90.31
Type Standard, Illuminated
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series LP11
Published 2008
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
