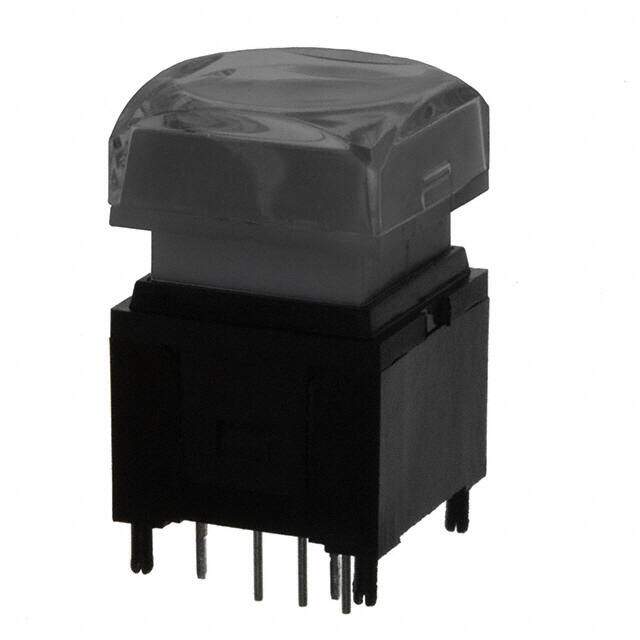

LP11OA1TBSRB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.1A 12V
PDF
/
Buying Options
Total Price: USD $8.34
Unit Price: USD $8.339975
≥1 USD $8.339975
≥10 USD $7.867901
≥100 USD $7.422548
≥500 USD $7.002402
≥1000 USD $6.606039
Inventory: 1145
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2008
Series LP11
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard, Illuminated
Additional Feature WITH LED
Voltage - Rated DC 12V
Current Rating (Amps) 100mA DC
Current Rating 100mA
Termination Style PC Pin
Body Length or Diameter 15.0114mm
Body Breadth 15.0114 mm
Actuator Type Square, Button
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.2mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Clear
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 2.2 3.5VDC
Illumination Type, Color LED, Red/Blue
Dielectric Withstanding Voltage 500VAC V
Electrical Life 1,000,000 Cycles
Throw Configuration SPST
Mechanical Life 1,000,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Blue, Red
Hole Diameter 8.2 mm
Contact (DC) Max Rating R Load 0.1A@12VDC
PCB Hole Count 9
Contact Function OFF-(ON)
Actuator Travel 4.4958 mm
Dimensions
Body Height 11.5062mm
Length - Termination 0.142 inch
Actuator Length 0.453 inch
Compliance
RoHS Status ROHS3 Compliant
