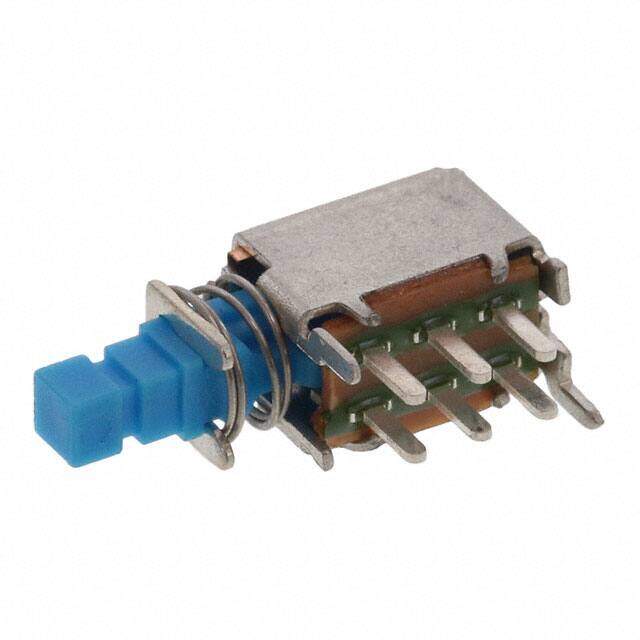

LC2255EENP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches 300mA/30VDC PC-Pin Latching NonShorting
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.899163
≥1 USD $0.899163
≥10 USD $0.84826
≥100 USD $0.800255
≥500 USD $0.754953
≥1000 USD $0.712222
Inventory: 1474
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Bronze, Silver
Mount Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Tin
Actuator Material Acetal
Terminal Material BRASS
Technical
Operating Temperature -20°C~85°C
Packaging Bulk
Published 2001
Series LC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.33
Voltage - Rated DC 30V
Current Rating (Amps) 300mA DC
Orientation Right Angle
Current Rating 300mA
Termination Style PC Pin
Body Length or Diameter 12mm
Body Breadth 7 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Contact Resistance 200mOhm
Contact Current(DC)-Max 0.3A
Sealing MOLDED
Dielectric Withstanding Voltage 1000VRMS V
Electrical Life 10,000 Cycles
Throw Configuration DPDT, SPDT
Max Voltage Rating (DC) 30V
Contact Timing BREAK-BEFORE-MAKE
Contact (DC) Max Rating R Load .3A@30VDC
PCB Hole Count 9
Contact Function ON-(ON)
Operating Force-Max 4.41 N
Dimensions
Body Height 9.6mm
Length - Termination 0.138 inch
Actuator Length 4mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
