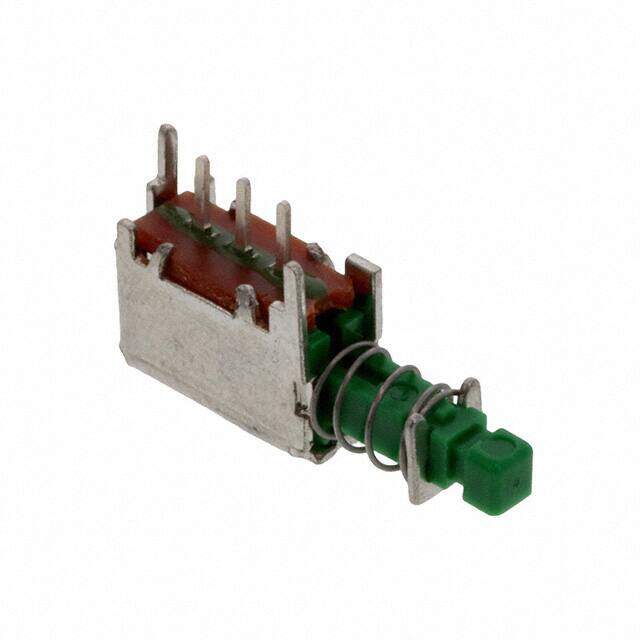

LC1258OASP image
Favorite
LC1258OASP image
Favorite

LC1258OASP

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description LC Series SPDT Momentary Through Hole Pushbutton Switch
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.8976
≥1 USD $0.8976
≥10 USD $0.80256
≥100 USD $0.660334
≥500 USD $0.558738
Inventory: 1178
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Actuator Length 0.394 inch
Length - Termination 0.138 inch
Body Height 8.3mm

Technical

Operating Force-Max 3.24 N
Actuator Angle 90 deg
Contact Function ON-(ON)
PCB Hole Count 5
Contact (DC) Max Rating R Load .3A@30VDC
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 1000VRMS V
Sealing MOLDED
Contact Current(DC)-Max 0.3A
Contact Resistance 0.1mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 5 mm
Body Length or Diameter 12mm
Termination Style PC Pin
Current Rating 300mA
Current Rating (Amps) 300mA DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LC
Published 2002
Packaging Bulk
Operating Temperature -20°C~85°C

Physical

End Contact Material PHOSPHOR BRONZE
Terminal Material BRASS
Center Contact Material PHOSPHOR BRONZE
Actuator Material POLYACETAL
Housing Material STEEL
Insulation Material PHENOLIC
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Silver

Supply Chain

Factory Lead Time 11 Weeks
