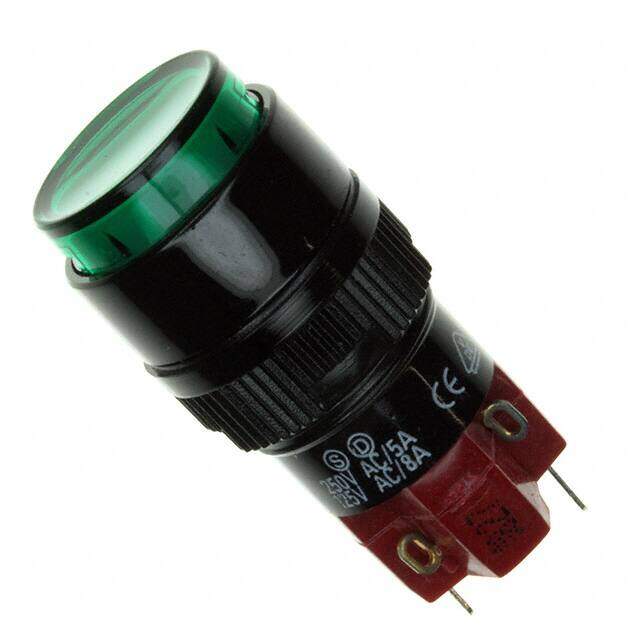

D16OAR11JGRNGRN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 8A 125V
PDF
/
Inventory: 6066
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Copper
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Series D16
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Voltage - Rated DC 24V
Current Rating (Amps) 8A AC 6A DC
Current Rating 6A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.1mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Green
Contact Current(DC)-Max 6A
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color LED, Green
Dielectric Withstanding Voltage 3000VAC V
Electrical Life 50,000 Cycles
Throw Configuration SPDT, SPST
Mechanical Life 100,000 Cycles
Illumination Type LED
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@250VAC
Hole Diameter 16 mm
Contact Voltage(AC)-Max 250V
Dimensions
Actuator Length 0.425 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
