800USP8P1A1M7RE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

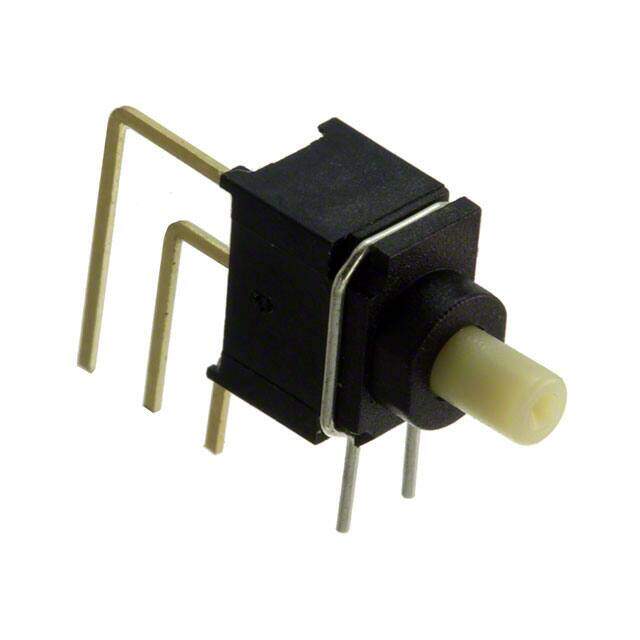

Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical
PDF
/
Buying Options
Total Price: USD $2.43
Unit Price: USD $2.427552
≥1 USD $2.427552
≥252 USD $0.940036
≥504 USD $0.907214
≥1008 USD $0.890146
Inventory: 3935
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2015
Series 800U
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Ingress Protection IP67 - Dust Tight, Waterproof
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Electrical Life 6,000 Cycles
Mechanical Life 40,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
