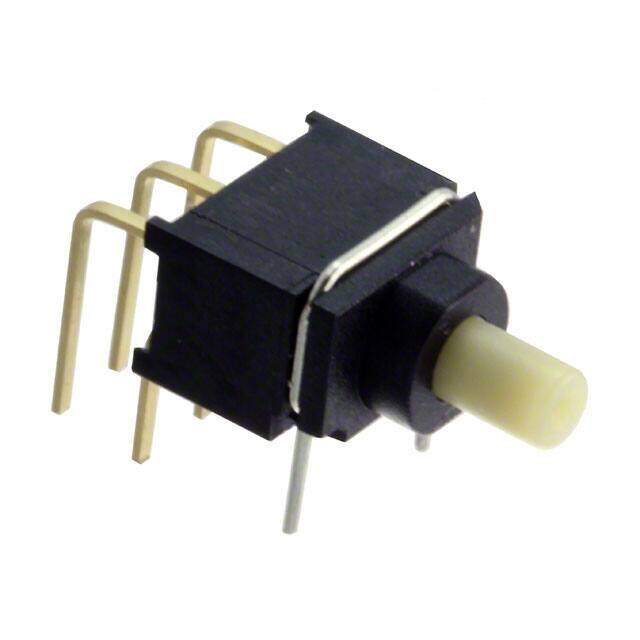

800UDP8P1A1M6RE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switch DPDT Standard Through Hole, Right Angle
PDF
/
Buying Options
Total Price: USD $3.29
Unit Price: USD $3.291777
≥1 USD $3.291777
≥10 USD $3.105453
≥100 USD $2.929667
≥500 USD $2.763833
≥1000 USD $2.60739
Inventory: 1170
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 40,000 Cycles
Electrical Life 6,000 Cycles
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 20V
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 800U
Published 2015
Packaging Tube
Operating Temperature -30°C~85°C
Physical
Mounting Type Through Hole, Right Angle
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
