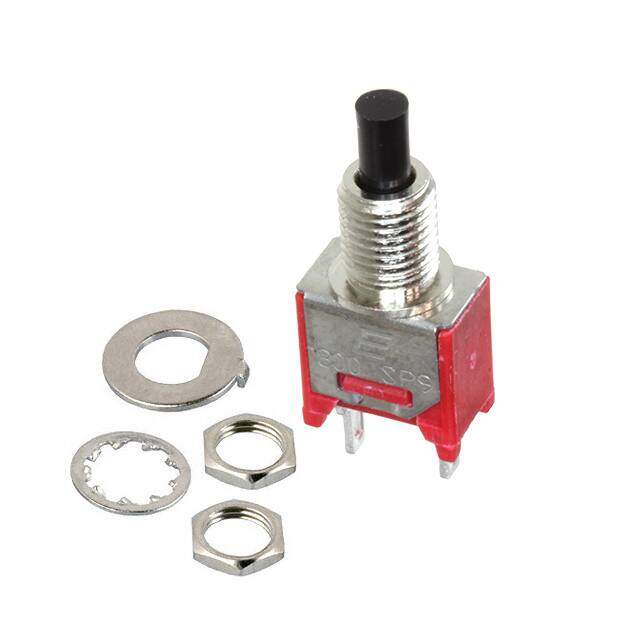

800SP9B5M1QEH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPST OFF(ON) SLDR MT
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.772
≥1 USD $2.772
≥10 USD $2.486
≥100 USD $2.130902
≥500 USD $1.787227
Inventory: 380
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 3.56mm
Technical
Contact Current Rating 1A
Mechanical Life 50,000 Cycles
Throw Configuration SPST
Electrical Life 50,000 Cycles
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Black
Contact Resistance 10mOhm
Panel Cutout Dimensions Circular - 4.95mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 3A
Orientation Straight
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 28V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 800
Published 2008
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Glass, Nylon, Polyster
Housing Material Stainless Steel
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 7 Weeks
