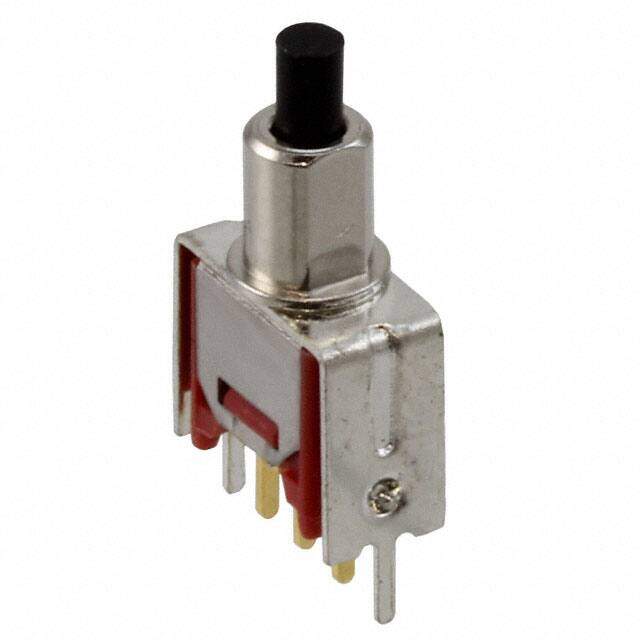

800SP8B6VS2RE image
Favorite
800SP8B6VS2RE image
Favorite

800SP8B6VS2RE

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $4.22
Unit Price: USD $4.224
≥1 USD $4.224
≥10 USD $3.76816
≥100 USD $3.567872
≥500 USD $3.440272
≥1000 USD $3.276504
≥3000 USD $3.130864
Inventory: 196
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Plating Gold
Mount Brackets, Through Hole
Mounting Type Through Hole
Insulation Material DIALLYL PHTHALATE
Housing Material STAINLESS STEEL
Center Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY

Technical

Operating Temperature -30°C~85°C
Packaging Bulk
Published 2006
Series 800
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Straight
Termination Style PC Pin
Voltage - Rated AC 20V
Body Length or Diameter 10.5664mm
Body Breadth 5.08 mm
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Contact Resistance 20mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Sealing EPOXY
Max Voltage Rating (AC) 20V
Dielectric Withstanding Voltage 1000VRMS V
Electrical Life 50,000 Cycles
Throw Configuration SPDT, SPST
Max Voltage Rating (DC) 20V
Mechanical Life 50,000 Cycles
PCB Hole Count 5
Contact Function ON-(ON)
Bushing Length 0.24 inch

Dimensions

Body Height 8.9408mm
Length - Termination 0.13 inch
Actuator Length 3.56mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
