800AWSP8M2QE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

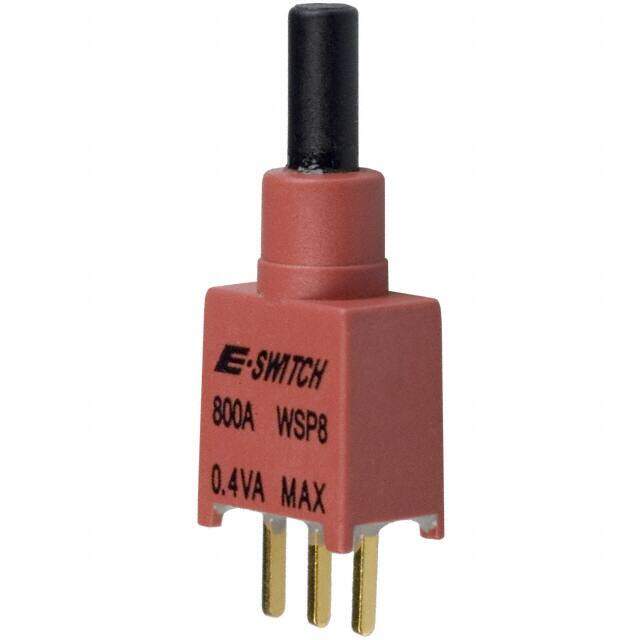

SWITCH PUSHBUTTON SPDT 1A 120V
PDF
/
Buying Options
Total Price: USD $4.14
Unit Price: USD $4.136
≥1 USD $4.136
≥10 USD $3.6872
≥100 USD $3.06357
≥500 USD $2.671733
Inventory: 338
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Housing Material Stainless Steel
Actuator Material Glass, Nylon, Polyester
Center Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2008
Series 800A
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Current Rating (Amps) 1A AC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Contact Resistance 100mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 3A
Sealing EPOXY TERMINAL SEALED
Max Voltage Rating (AC) 120V
Dielectric Withstanding Voltage 1000VRMS V
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@120VAC
Contact (DC) Max Rating R Load 3A@28VDC
PCB Hole Count 2
Contact Function ON-(ON)
Dimensions
Length 8.13mm
Width 5.08mm
Body Height 8.89mm
Actuator Length 5.46mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
