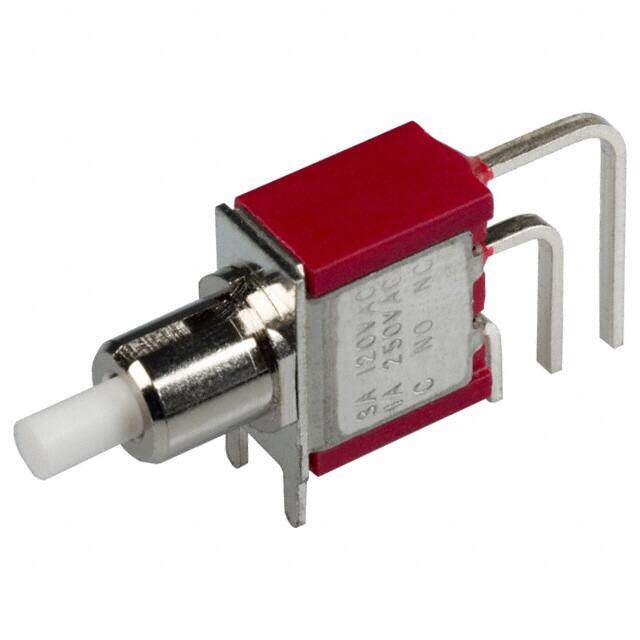

700SP7B20M7QE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 120V
PDF
/
Buying Options
Total Price: USD $4.53
Unit Price: USD $4.532
≥1 USD $4.532
≥10 USD $4.04448
≥100 USD $3.828704
≥500 USD $3.691072
≥1000 USD $3.514456
≥3000 USD $3.35735
Inventory: 622
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Silver
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2008
Series 700
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 3A AC/DC
Orientation Vertical
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Color - Actuator/Cap White
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Contact Current Rating 3A
Dimensions
Length 12.7mm
Width 6.86mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
