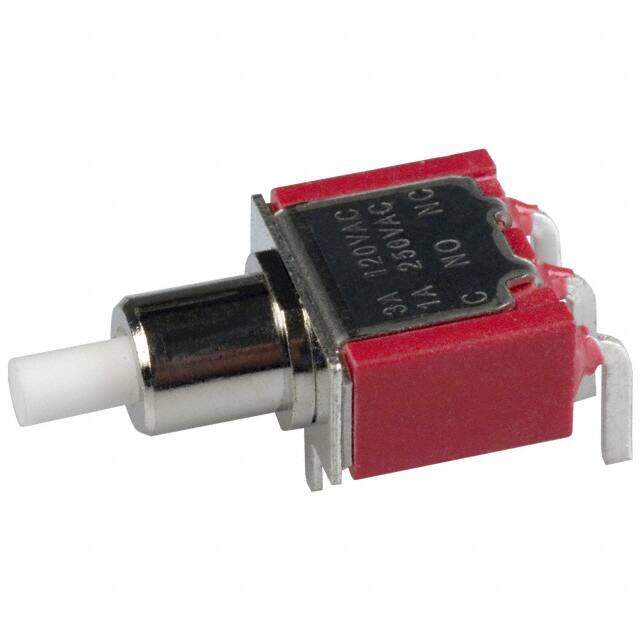

700SP7B20M6QE image
Favorite
700SP7B20M6QE image
Favorite

700SP7B20M6QE

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description Pushbutton Switch, Spdt, 3A, 120Vac, 28Vdc, Right Angle Through Hole
PDF
/
Buying Options
Total Price: USD $4.53
Unit Price: USD $4.532
≥1 USD $4.532
≥10 USD $4.04448
≥100 USD $3.828704
≥500 USD $3.691072
≥1000 USD $3.514456
≥3000 USD $3.357341
Inventory: 1112
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole, Right Angle
Manufacturer Package Identifier 700SP7B20M6QE

Technical

Operating Temperature -30°C~85°C
Packaging Bulk
Published 2008
Series 700
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 3A AC/DC
Orientation Right Angle
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Contact Resistance 20mOhm
Color - Actuator/Cap White
Max Voltage Rating (AC) 250V
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Mechanical Life 50,000 Cycles
Contact Current Rating 3A
Life (Cycles) 50000 cycles

Dimensions

Height 7.11mm
Length 12.7mm
Width 6.86mm
Actuator Length 5.54mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
