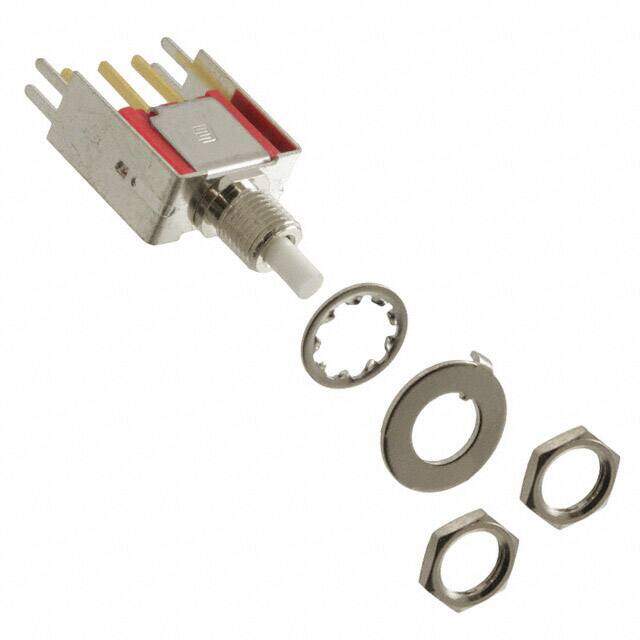

700SP7B10VS3RE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $1.73
Unit Price: USD $1.725151
≥1 USD $1.725151
Inventory: 8389
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.202 inch
Technical
Bushing Diameter 0.25 inch
Bushing Length 0.29 inch
Actuator Travel 1.016 mm
Contact Function ON-(ON)
PCB Hole Count 7
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 1000VRMS V
Color - Actuator/Cap White
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style PC Pin
Current Rating (Amps) 0.4VA AC/DC
Power Rating 400mW
Type Standard
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 700
Published 2008
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
End Contact Material COPPER ALLOY
Center Contact Material COPPER ALLOY
Insulation Material DIALLYL PHTHALATE
Mounting Feature THROUGH HOLE-STRAIGHT
Surface Mount NO
Mounting Type Panel Mount, Rear
Contact Plating Gold
Supply Chain
Factory Lead Time 9 Weeks
