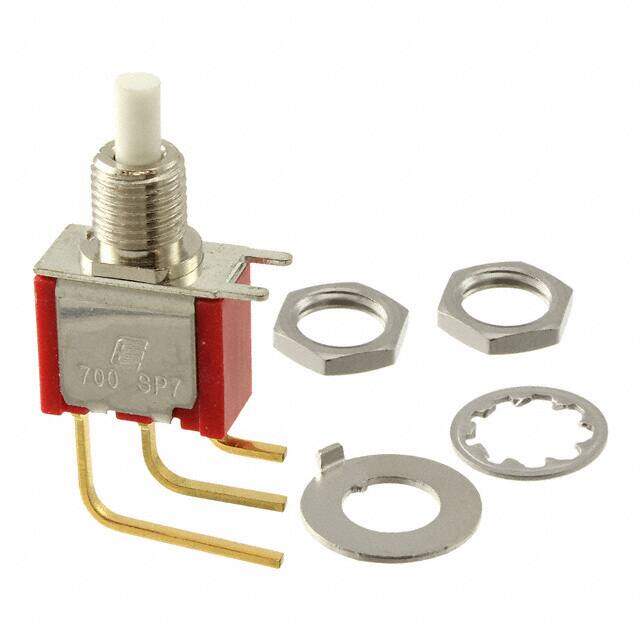

700SP7B10M7RE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.335219
≥1 USD $1.335219
Inventory: 1164
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Gold
Mounting Type Panel Mount, Right Angle, Vertical, Rear
Surface Mount NO
Mounting Feature THROUGH HOLE-RIGHT ANGLE
Insulation Material DIALLYL PHTHALATE
Center Contact Material COPPER ALLOY
End Contact Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2008
Series 700
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Standard
Power Rating 400mW
Current Rating (Amps) 0.4VA AC/DC
Termination Style PC Pin
Voltage - Rated AC 20V
Body Length or Diameter 6.858mm
Body Breadth 12.7 mm
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap White
Dielectric Withstanding Voltage 1000VRMS V
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
PCB Hole Count 5
Contact Function ON-(ON)
Actuator Travel 1.016 mm
Bushing Length 0.296 inch
Bushing Diameter 0.25 inch
Dimensions
Body Height 20.828mm
Length - Termination 0.125 inch
Actuator Length 0.202 inch
Compliance
RoHS Status ROHS3 Compliant
