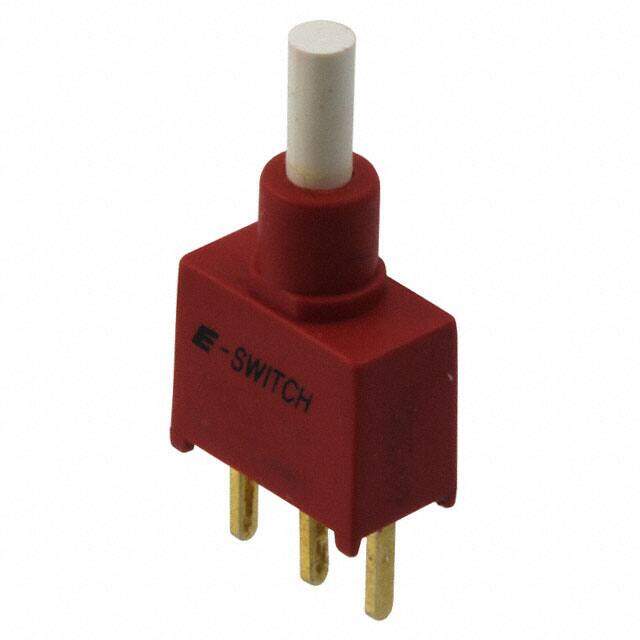

700ASP7B21M2QE
RoHS
RoHS compliant
RoHS compliantPackage 120
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 120V
PDF
/
Buying Options
Total Price: USD $4.21
Unit Price: USD $4.209157
≥1 USD $4.209157
≥216 USD $1.629309
≥540 USD $1.571541
≥972 USD $1.54397
Inventory: 1565
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Dimensions
Body Height 10.4mm
Technical
Contact Current(AC)-Max 3A
Contact Current Rating 3A
Electrical Life 50,000 Cycles
Sealing EPOXY TERMINAL SEALED; IP67
Contact Current(DC)-Max 3A
Color - Actuator/Cap White
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Body Breadth 6.6 mm
Body Length or Diameter 12.7mm
Voltage - Rated AC 120V
Termination Style PC Pin
Current Rating 3A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 28V
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series 700A
Published 2008
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Housing Material Nylon
Package / Case 120
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
