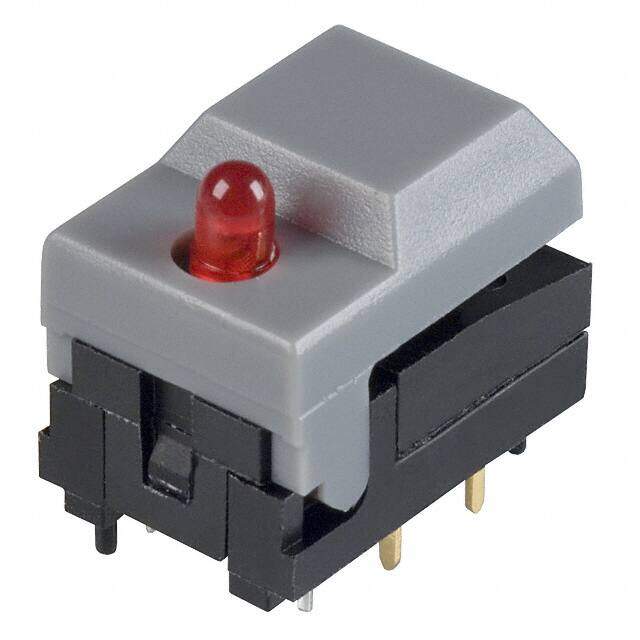

5501MGRYRED
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.3A 12V
PDF
/
Buying Options
Total Price: USD $1.18
Unit Price: USD $1.177671
≥1 USD $1.177671
Inventory: 4685
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Insulation Material NYLON
Actuator Material ACRYLONITRILE BUTADIENE STYRENE
Center Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
Technical
Operating Temperature -25°C~65°C
Packaging Bulk
Published 2006
Series 5500
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Keyswitch, Illuminated
Additional Feature SMALL CAP
Voltage - Rated DC 12V
Current Rating (Amps) 300mA DC
Current Rating 300mA
Termination Style PC Pin
Body Length or Diameter 17.5006mm
Body Breadth 12.3952 mm
Actuator Type Square, Button
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.1mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Gray
Contact Current(DC)-Max 0.05A
Illumination Voltage (Nominal) 2.2VDC
Illumination Type, Color LED, Red
Sealing MOLDED
Dielectric Withstanding Voltage 1000VRMS V
Electrical Life 500000 Cycle(s)
Mechanical Life 500,000 Cycles
Contact Current Rating 50mA
Illumination Type LED
Contact (DC) Max Rating R Load 0.05A@12VDC
PCB Hole Count 10
Contact Function ON-(ON)
Actuator Travel 1.4986 mm
Dimensions
Body Height 8.001mm
Length - Termination 0.138 inch
Actuator Length 0.248 inch
Compliance
RoHS Status ROHS3 Compliant
