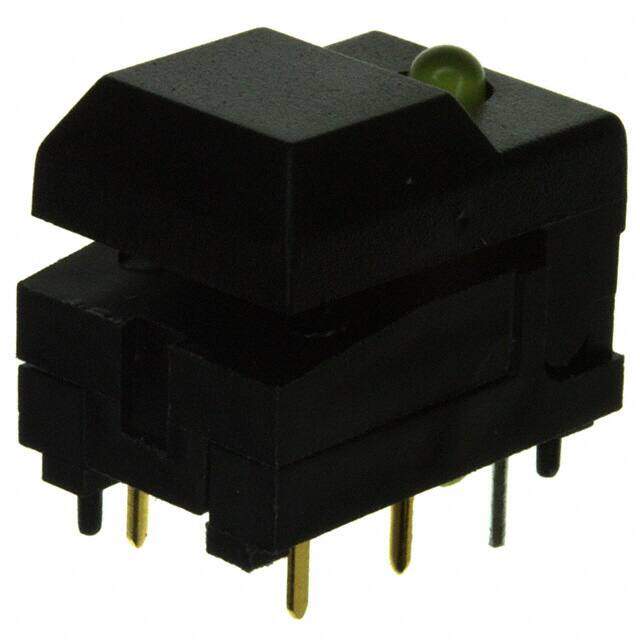

5501MBLKYEL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.3A 12V
PDF
/
Inventory: 9851
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Insulation Material NYLON
Actuator Material ACRYLONITRILE BUTADIENE STYRENE
Center Contact Plating GOLD OVER NICKEL
Center Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
End Contact Plating GOLD OVER NICKEL
Technical
Operating Temperature -25°C~65°C
Packaging Bulk
Published 2006
Series 5500
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Keyswitch, Illuminated
Additional Feature SMALL CAP
Voltage - Rated DC 12V
Current Rating (Amps) 300mA DC
Current Rating 300mA
Termination Style PC Pin
Body Length or Diameter 17.5006mm
Body Breadth 12.3952 mm
Actuator Type Square, Button
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.1mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 0.05A
Illumination Voltage (Nominal) 2.2VDC
Illumination Type, Color LED, Yellow
Sealing MOLDED
Dielectric Withstanding Voltage 1000VRMS V
Electrical Life 500000 Cycle(s)
Mechanical Life 500,000 Cycles
Illumination Type LED
Contact (DC) Max Rating R Load 0.05A@12VDC
PCB Hole Count 10
Contact Function ON-(ON)
Actuator Travel 1.4986 mm
Dimensions
Body Height 8.001mm
Length - Termination 0.138 inch
Actuator Length 0.248 inch
Compliance
RoHS Status ROHS3 Compliant
