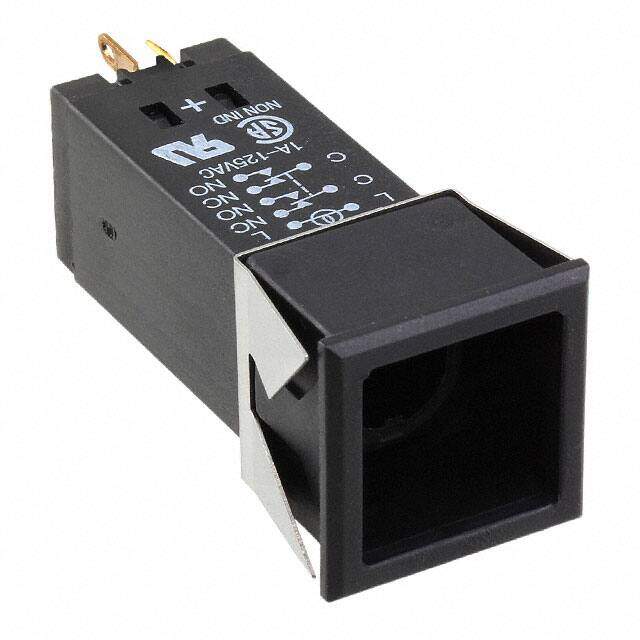

5542121211
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 125V
PDF
/
Inventory: 7057
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Technical
Packaging Bulk
Series 554
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Type Standard, Illuminated
HTS Code 8536.50.90.31
Voltage - Rated DC 30V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 21.44mm
Current Rating 1A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Square - 19.18mm2
Contact Current(DC)-Max 1A
Max Voltage Rating (AC) 125V
Max Current Rating 1A
Max Voltage Rating (DC) 30V
Contact Current Rating 1A
Illumination Type Lamp
Contact Current(AC)-Max 1A
Contact (AC) Max Rating R Load 1A@125VAC
Contact (DC) Max Rating R Load 1A@30VDC
Dimensions
Body Height 52.83mm
Compliance
RoHS Status RoHS Compliant
