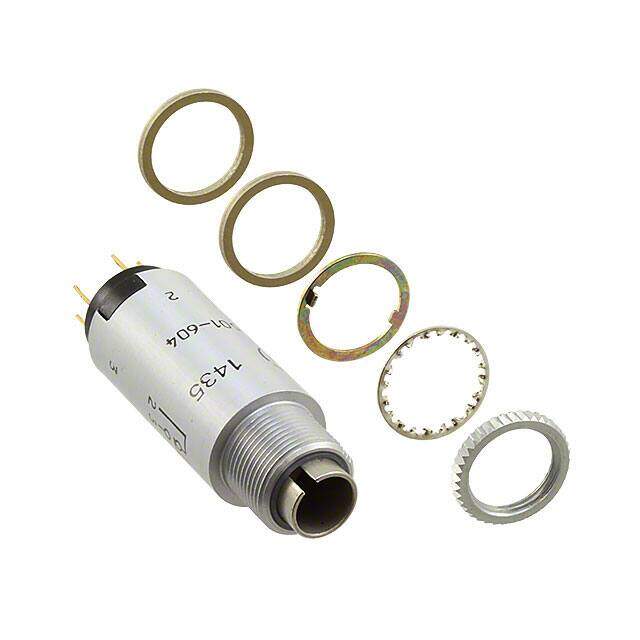

5131501604
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 5A 125V
PDF
/
Inventory: 8719
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Body Height 37.28mm
Technical
Contact Voltage(AC)-Max 125V
Contact Current(AC)-Max 5A
Mechanical Life 100,000 Cycles
Contact Voltage(DC)-Max 30V
Contact Current(DC)-Max 5A
Panel Cutout Dimensions Circular - 12.70mm Dia
Switch Function On-Off, Off-On
Circuit DPST-NO/NC
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
Type Standard, Illuminated
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 513
Packaging Bulk
Physical
Mounting Feature PANEL MOUNT-THREADED
Surface Mount NO
Mounting Type Panel Mount, Rear
Supply Chain
Factory Lead Time 15 Weeks
