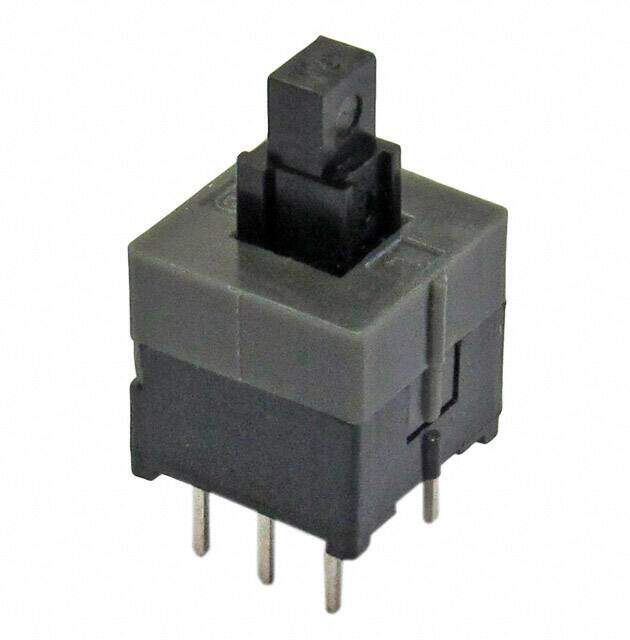

GPBS-850N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 0.3A 30V
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.584
≥1 USD $1.584
≥10 USD $1.41416
≥100 USD $1.3376
≥500 USD $1.273536
≥1000 USD $1.215896
≥3000 USD $1.164698
Inventory: 1106
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
Dimensions
Body Height 8.509mm
Width 8.5mm
Length 8.5mm
Technical
Life (Cycles) 100000 cycles
Solderability HAND
Contact Function ON-(ON)
PCB Hole Count 6
Contact (DC) Max Rating R Load 0.3A@30VDC
Mechanical Life 100,000 Cycles
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 250VAC V
Contact Current(DC)-Max 0.3A
Insulation Resistance 100000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Mom
Circuit DPDT
Actuator Type Rectangular, Plunger
Body Breadth 8.509 mm
Termination Style PC Pin
Current Rating 300mA
Current Rating (Amps) 300mA DC
Voltage - Rated DC 30V
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series GPBS
Published 2012
Packaging Bulk
Operating Temperature -25°C~65°C
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
