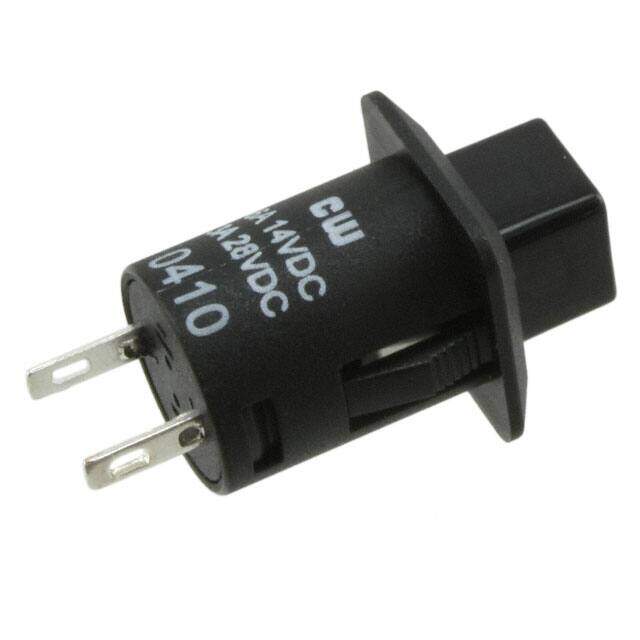

GPB554B05BB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 6A 14V
PDF
/
Buying Options
Total Price: USD $5.23
Unit Price: USD $5.2272
≥1 USD $5.2272
≥10 USD $4.71064
≥100 USD $4.474976
≥500 USD $4.286656
≥1000 USD $4.145328
≥3000 USD $3.933389
Inventory: 754
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Actuator Material POLYCARBONATE
Terminal Material BRASS
Technical
Operating Temperature 0°C~55°C
Packaging Bulk
Published 2010
Series GPB
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Terminal Finish SILVER
Voltage - Rated DC 14V
Current Rating (Amps) 6A DC
Current Rating 6A
Termination Style Solder Lug
Body Length or Diameter 11.9126mm
Actuator Type Square, Button
Circuit SPST
Switch Function Off-On
Panel Cutout Dimensions Circular - 12.10mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 3A
Contact Voltage(DC)-Max 28V
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 6000 Cycle(s)
Contact (DC) Max Rating R Load 3A@28VDC
Dimensions
Body Height 13.9954mm
Length - Termination 0.236 inch
Actuator Length 0.315 inch
Compliance
RoHS Status ROHS3 Compliant
