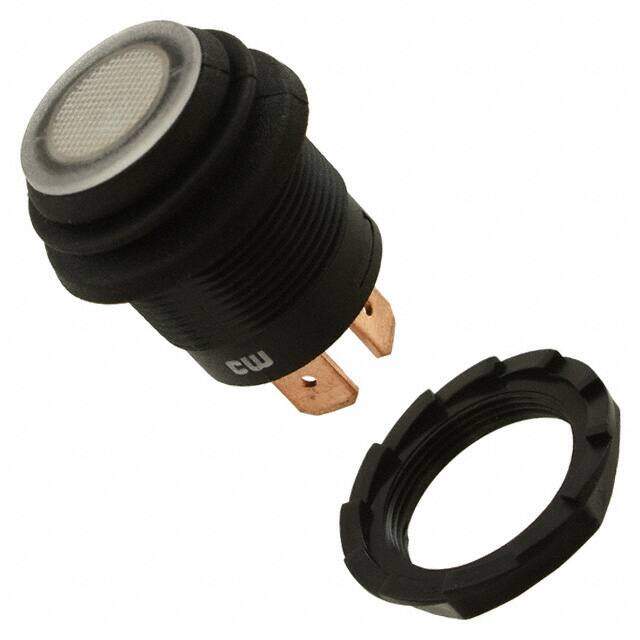

GPB553B2L01BW
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 10A 14V
PDF
/
Inventory: 1441
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.37 inch
Technical
Illumination Type LED
Electrical Life 20,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Illumination Type, Color LED, White
Illumination Voltage (Nominal) 12VDC
Color - Actuator/Cap White
Insulation Resistance 100000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 22.00mm Dia
Switch Function Off-On
Circuit SPST
Actuator Type Round, Button
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 10A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 10A DC
Voltage - Rated DC 14V
Type Standard, Illuminated
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series GPB
Published 2012
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Actuator Material POLYCARBONATE
Housing Material NYLON
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 14 Weeks
