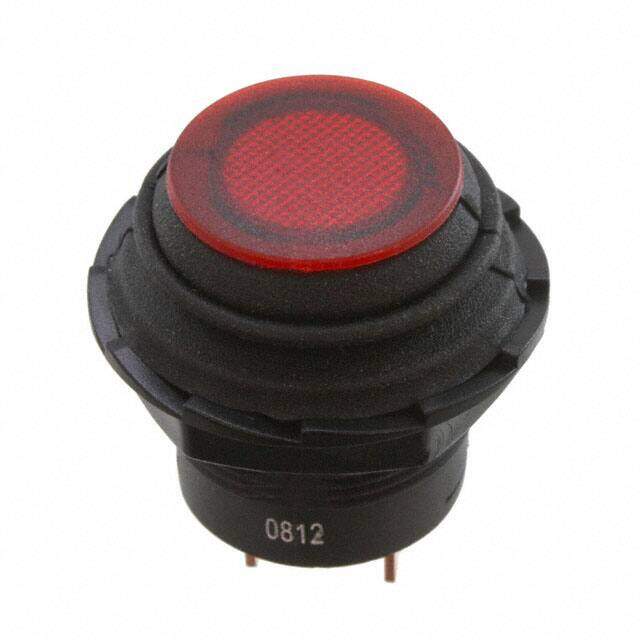

GPB553B201BR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 10A 14V
PDF
/
Inventory: 4702
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Actuator Material POLYCARBONATE
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2012
Series GPB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Type Standard
Voltage - Rated DC 14V
Current Rating (Amps) 10A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 10A
Termination Style Quick Connect - 0.250 (6.3mm)
Actuator Type Round, Button
Circuit SPST
Switch Function Off-On
Panel Cutout Dimensions Circular - 22.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Red
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 20,000 Cycles
Illumination LED
Contact (DC) Max Rating R Load 10A@14VDC
Dimensions
Length - Termination 0.37 inch
Actuator Length 0.315 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
