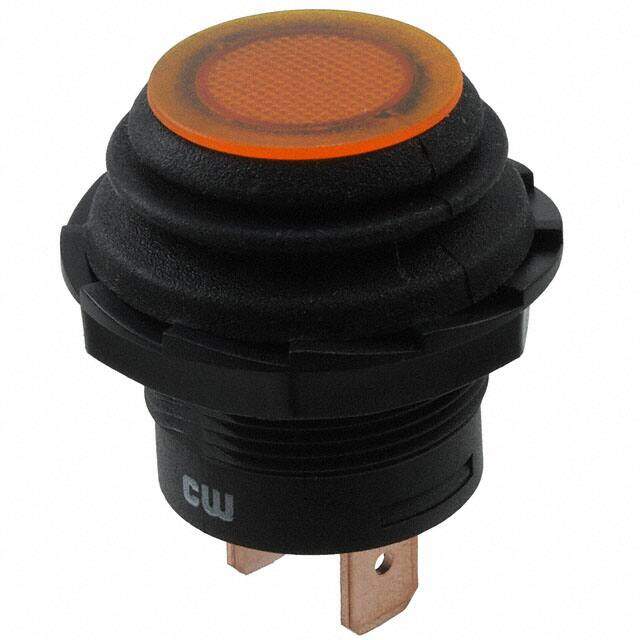

GPB553A201BA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 10A 14V
PDF
/
Buying Options
Total Price: USD $1.7
Unit Price: USD $1.702831
≥1 USD $1.702831
Inventory: 7252
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.37 inch
Technical
Contact Function OFF-(ON)
Contact (DC) Max Rating R Load 10A@14VDC
Illumination LED
Throw Configuration SPST
Electrical Life 20,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Amber
Insulation Resistance 100000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 22.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 10A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 10A DC
Voltage - Rated DC 14V
Type Standard
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series GPB
Published 2012
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Actuator Material POLYCARBONATE
Housing Material NYLON
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 14 Weeks
