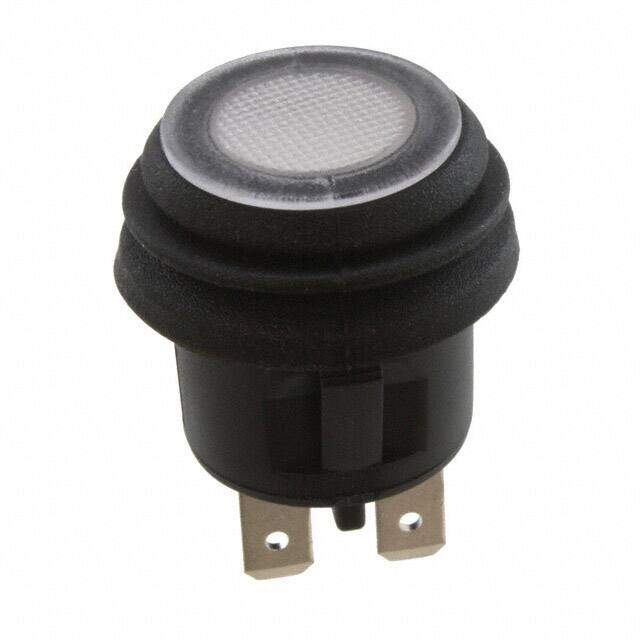

GPB527D202BW
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 10A 125V
PDF
/
Inventory: 9984
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material NYLON
Actuator Material POLYCARBONATE
Terminal Material COPPER ALLOY
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Series GPB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Type Standard
Voltage - Rated DC 14V
Current Rating (Amps) 10A AC 20A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 20A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Body Length or Diameter 19.812mm
Actuator Type Round, Button
Circuit SPST
Switch Function Off-On
Panel Cutout Dimensions Circular - 20.20mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap White
Dielectric Withstanding Voltage 1500VAC V
Illumination LED
Contact Current(AC)-Max 6A
Contact (AC) Max Rating R Load 6A@250VAC
Contact Voltage(AC)-Max 250V
Contact Function ON-OFF
Contact (AC) Max Power Rating R Load 0.5HP@250VAC
Dimensions
Body Height 17.5006mm
Length - Termination 0.354 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
