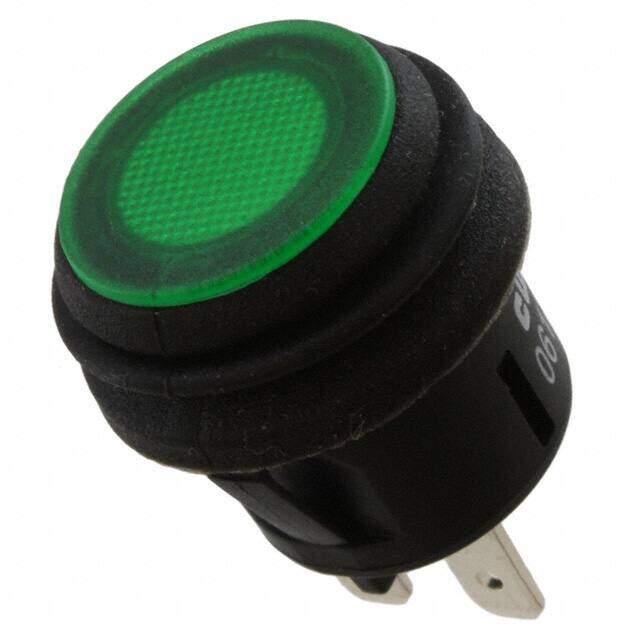

GPB527D202BG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 10A 125V
PDF
/
Buying Options
Total Price: USD $3.36
Unit Price: USD $3.3616
≥1 USD $3.3616
≥10 USD $2.99904
≥100 USD $2.83888
≥500 USD $2.7368
≥1000 USD $2.605856
≥3000 USD $2.562982
Inventory: 766
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material NYLON
Actuator Material POLYCARBONATE
Terminal Material COPPER ALLOY
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2013
Series GPB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Type Standard
Voltage - Rated DC 14V
Current Rating (Amps) 10A AC 20A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 20A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Body Length or Diameter 19.812mm
Actuator Type Round, Button
Circuit SPST
Switch Function Off-On
Panel Cutout Dimensions Circular - 20.20mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Green
Dielectric Withstanding Voltage 1500VAC V
Illumination LED
Contact Current(AC)-Max 6A
Contact (AC) Max Rating R Load 6A@250VAC
Contact Voltage(AC)-Max 250V
Contact Function ON-OFF
Contact (AC) Max Power Rating R Load 0.5HP@250VAC
Dimensions
Body Height 17.5006mm
Length - Termination 0.354 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
