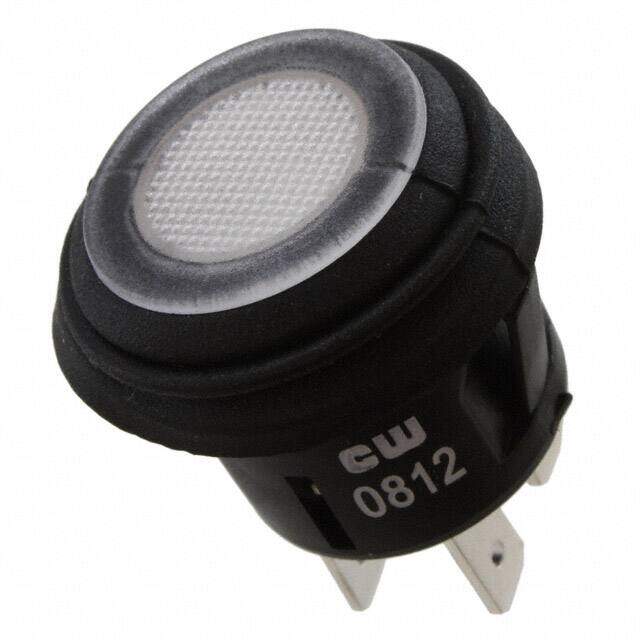

GPB527B202BW
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 10A 125V
PDF
/
Inventory: 4440
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.295 inch
Length - Termination 0.236 inch
Body Height 14.5034mm
Technical
Contact (AC) Max Power Rating R Load 0.5HP@250VAC
Actuator Travel 4.4958 mm
Contact Function ON-OFF
Contact Voltage(AC)-Max 250V
Contact (DC) Max Rating R Load 20A@14VDC
Contact (AC) Max Rating R Load 6A@250VAC
Contact Current(AC)-Max 6A
Dielectric Withstanding Voltage 1500VAC V
Contact Voltage(DC)-Max 14V
Contact Current(DC)-Max 20A
Color - Actuator/Cap White
Insulation Resistance 100000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 20.20mm Dia
Switch Function Off-On
Circuit DPST
Actuator Type Round, Button
Body Length or Diameter 14.5034mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 10A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 10A AC/DC
Voltage - Rated DC 28V
Type Standard
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series GPB
Published 2012
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Terminal Material COPPER ALLOY
Actuator Material POLYCARBONATE
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Supply Chain
Factory Lead Time 14 Weeks
