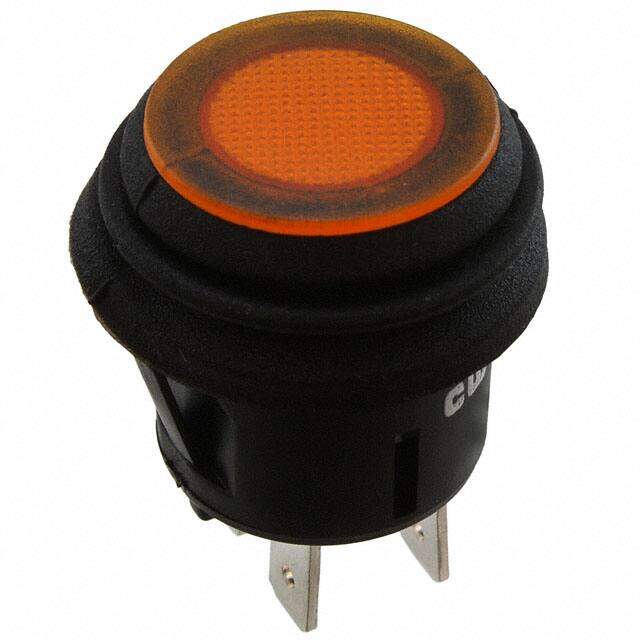

GPB527A2L02BA1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPST-NO 10A 125V
PDF
/
Buying Options
Total Price: USD $1.62
Unit Price: USD $1.618806
≥1 USD $1.618806
Inventory: 2058
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Insulation Material NYLON
Actuator Material POLYCARBONATE
Terminal Material COPPER ALLOY
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2012
Series GPB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Type Standard, Illuminated
Voltage - Rated DC 28V
Current Rating (Amps) 10A AC/DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 10A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Body Length or Diameter 19.812mm
Actuator Type Round, Button
Circuit DPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 20.20mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Amber
Contact Current(DC)-Max 20A
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color LED, Amber
Contact Voltage(DC)-Max 14V
Dielectric Withstanding Voltage 1500VAC V
Throw Configuration DPST
Illumination Type LED
Contact Current(AC)-Max 6A
Contact (AC) Max Rating R Load 6A@250VAC
Contact (DC) Max Rating R Load 20A@14VDC
Contact Voltage(AC)-Max 250V
Contact Function (ON)-OFF
Body Color BLACK
Contact (AC) Max Power Rating R Load 0.5HP@250VAC
Dimensions
Body Height 14.5034mm
Length - Termination 0.354 inch
Actuator Length 0.295 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
