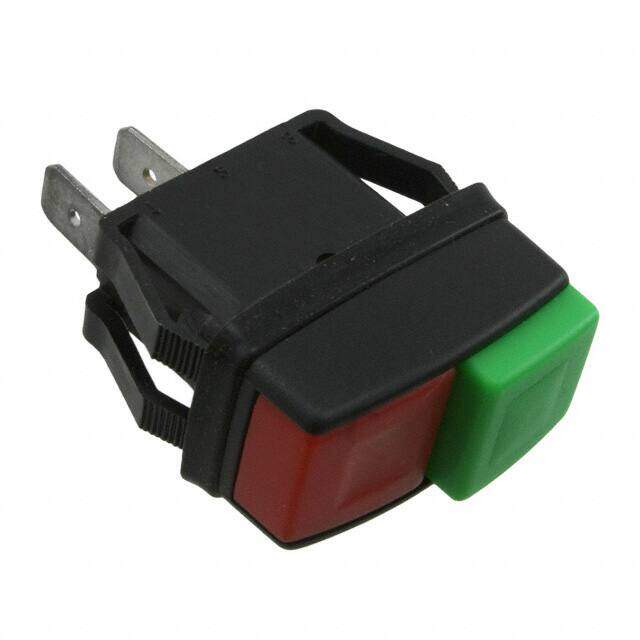

GPB526A01BRG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST 16A 125V
PDF
/
Inventory: 959
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP56, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.523 inch
Length - Termination 0.394 inch
Body Height 17.907mm
Technical
Contact (AC) Max Power Rating R Load 0.5HP@250VAC
Contact Function ON-OFF
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 10A@250VAC
Contact Current(AC)-Max 10A
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Red, Green
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Rectangular - 27.60mm x 13.80mm
Switch Function Off-On
Circuit SPST
Operating Temperature (Min) -25°C
Actuator Type Square, Button, Dual
Body Breadth 20.4978 mm
Operating Temperature (Max) 85°C
Body Length or Diameter 33.5026mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 16A
Ingress Protection IP56 - Dust Protected, Water Resistant
Current Rating (Amps) 16A AC
Type Standard
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series GPB
Packaging Bulk
Physical
Actuator Material NYLON
Housing Material NYLON
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
