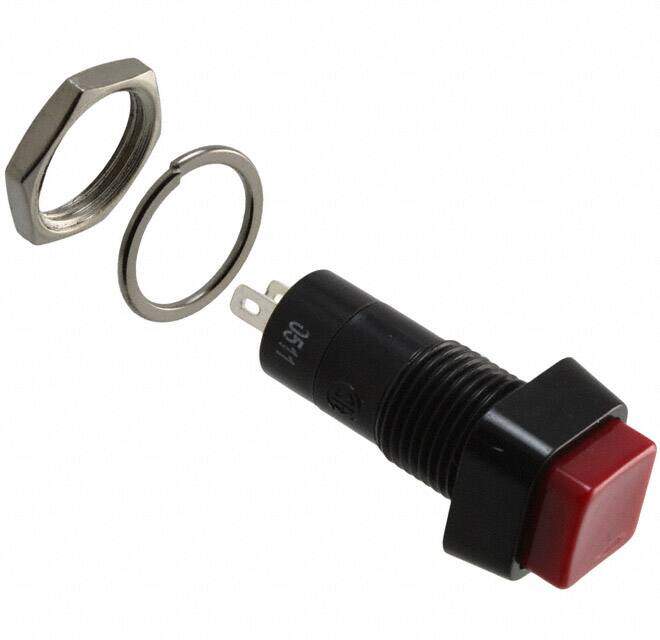

GPB023A05BR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 3A 125V
PDF
/
Buying Options
Total Price: USD $3.35
Unit Price: USD $3.3528
≥1 USD $3.3528
≥10 USD $2.99112
≥100 USD $2.833248
≥500 USD $2.733104
≥1000 USD $2.590016
≥3000 USD $2.475581
Inventory: 1182
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Insulation Material PHENOLIC
Actuator Material ACRYLONITRILE BUTADIENE STYRENE
Technical
Packaging Bulk
Series GPB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Current Rating (Amps) 3A AC
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Operating Temperature (Max) 85°C
Actuator Type Square, Button
Operating Temperature (Min) -20°C
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 12.20mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Red
Dielectric Withstanding Voltage 1000VAC V
Throw Configuration SPST
Contact Current(AC)-Max 1.5A
Contact (AC) Max Rating R Load 1.5A@250VAC
Contact Voltage(AC)-Max 250V
Contact Function OFF-(ON)
Body Color BLACK
Dimensions
Body Height 22.9108mm
Length - Termination 0.228 inch
Compliance
RoHS Status ROHS3 Compliant
