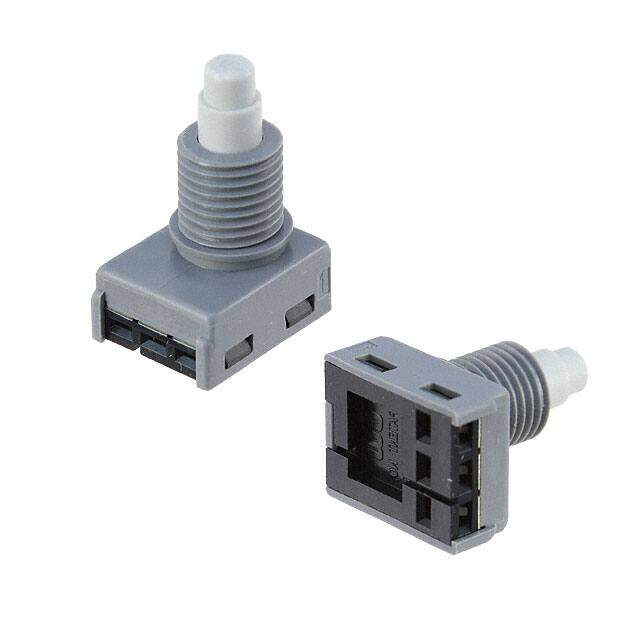

GC-536-0203
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 125V
PDF
/
Inventory: 8646
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.291 inch
Body Height 9.8552mm
Technical
Bushing Diameter 0.44 inch
Bushing Length 0.43 inch
Contact (AC) Max Rating R Load 1A@125VAC
Contact Current(AC)-Max 1A
Mechanical Life 30,000 Cycles
Contact Current(DC)-Max 3A
Color - Actuator/Cap White
Switch Function On-On
Circuit SPDT
Actuator Type Round, Plunger
Body Breadth 14.0716 mm
Operating Temperature (Max) 105°C
Body Length or Diameter 17.018mm
Voltage - Rated AC 125V
Termination Style Socketable
Current Rating 3A
Current Rating (Amps) 1A AC 3A DC
Voltage - Rated DC 14V
Type Standard
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series GC-536
Published 2012
Packaging Bulk
Physical
Mounting Type Panel Mount, Rear
Mount Panel
