SW19SSL335
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

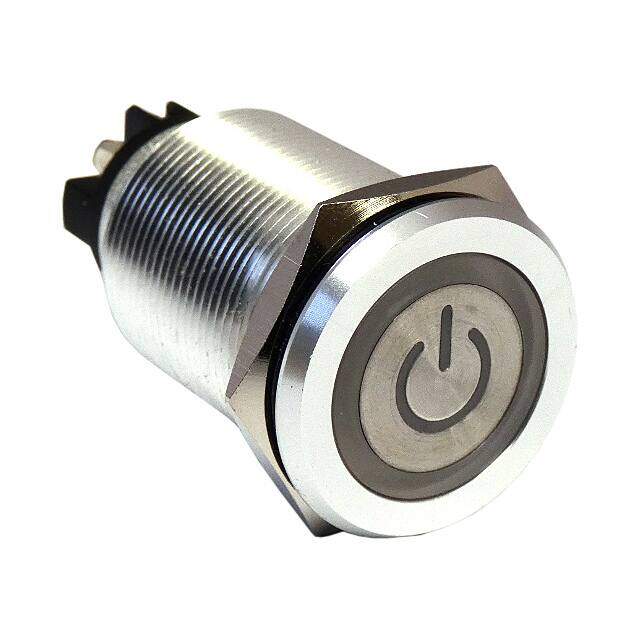

SWITCH PB SCREW ALT ACT PWR 110V
PDF
/
Buying Options
Total Price: USD $8.5
Unit Price: USD $8.5008
≥1 USD $8.5008
Inventory: 117
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -40°C~80°C
Packaging Bulk
Series SW19SS
Feature Power Symbol
Part Status Active
Type Standard, Illuminated
Current Rating (Amps) 5A AC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Screw Terminal
Voltage - Rated AC 250V
Actuator Type Round, Button, Flush
Circuit DPST-NO/NC
Switch Function On-Off, Off-On
Panel Cutout Dimensions Circular - 19.00mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 110VAC
Illumination Type, Color LED, Yellow
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
