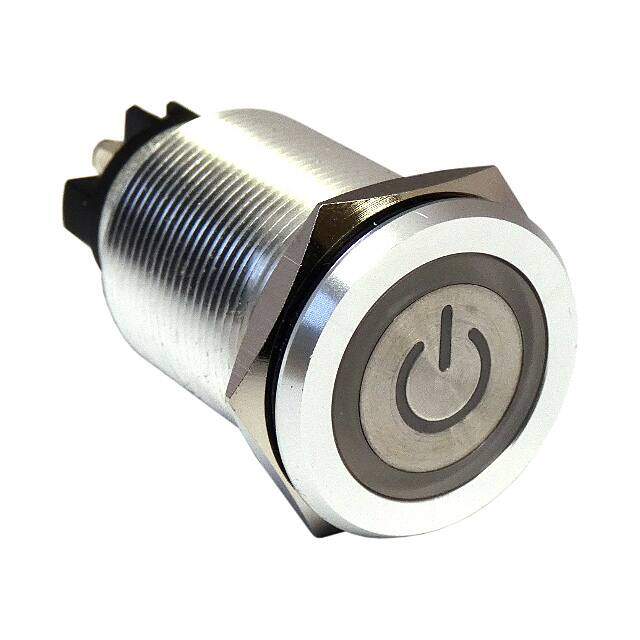

SW19SSL332
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PB SCREW ALT ACT PWR 12V
PDF
/
Inventory: 8525
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Yellow
Illumination Voltage (Nominal) 12VAC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 19.00mm Dia
Switch Function On-Off, Off-On
Circuit DPST-NO/NC
Actuator Type Round, Button, Flush
Voltage - Rated AC 250V
Termination Style Screw Terminal
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 5A AC
Type Standard, Illuminated
Part Status Active
Feature Power Symbol
Series SW19SS
Packaging Bulk
Operating Temperature -40°C~80°C
Physical
Mounting Type Panel Mount, Front
