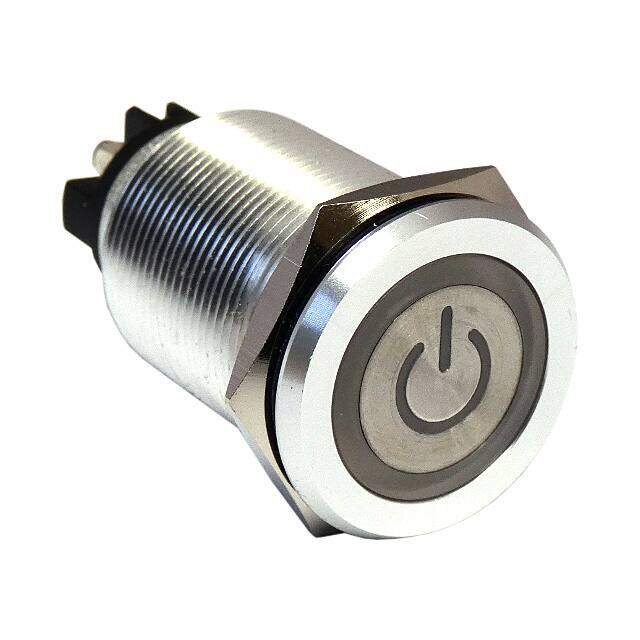

SW19SSL315
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PB SCREW ALT ACT PWR 110V
PDF
/
Buying Options
Total Price: USD $8.5
Unit Price: USD $8.5008
≥1 USD $8.5008
Inventory: 45
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 110VAC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 19.00mm Dia
Switch Function On-Off, Off-On
Circuit DPST-NO/NC
Actuator Type Round, Button, Flush
Voltage - Rated AC 250V
Termination Style Screw Terminal
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 5A AC
Type Standard, Illuminated
Part Status Active
Feature Power Symbol
Series SW19SS
Packaging Bulk
Operating Temperature -40°C~80°C
Physical
Mounting Type Panel Mount, Front
