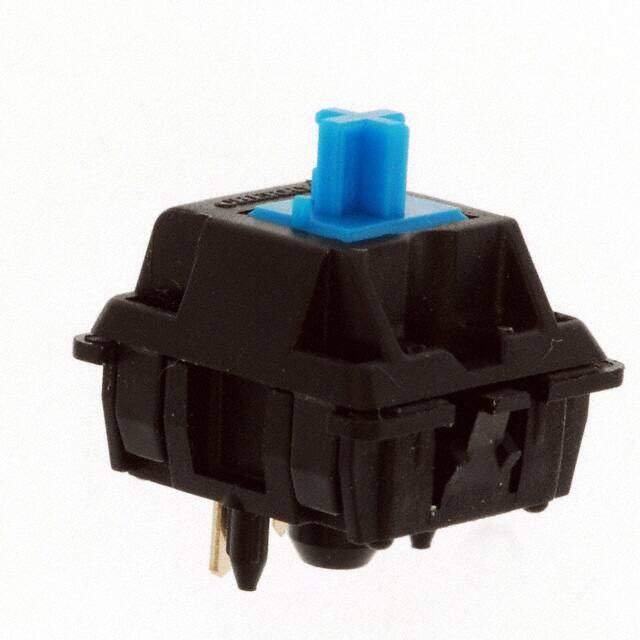

MX1A-E1NW
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.01A 12V
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9856
≥1 USD $0.9856
≥10 USD $0.7832
Inventory: 1050
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Number of Pins 2
Housing Material Thermoplastic
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2000
Series MX
Feature Audible Click
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pin
Type Keyswitch
Max Operating Temperature 70°C
Min Operating Temperature -10°C
Voltage - Rated DC 12V
Current Rating (Amps) 10mA AC/DC
Orientation Straight
Terminal Pitch 6.35mm
Current Rating 10mA
Termination Style PC Pin
Voltage - Rated AC 12V
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 200mOhm
Row Spacing 2.54 mm
Color - Actuator/Cap Blue
Max Voltage Rating (AC) 12V
Max Current Rating 10mA
Electrical Life 20,000,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 12V
Mechanical Life 2e+07 cycles
Contact Current Rating 10mA
Operating Force 500 mN
Dimensions
Length 15.6mm
Width 15.6mm
Actuator Length 3.6mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 HB
Lead Free Lead Free
