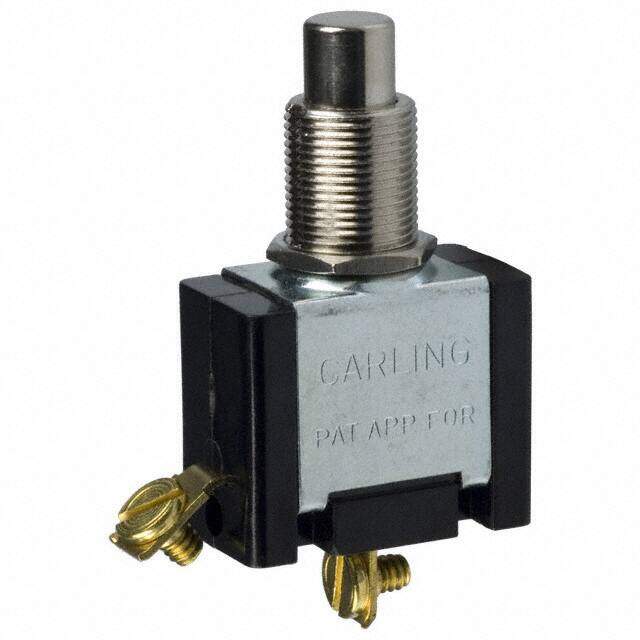

PA304
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST 20A 125V
PDF
/
Buying Options
Total Price: USD $12.64
Unit Price: USD $12.639557
≥1 USD $12.639557
≥10 USD $11.924109
≥100 USD $11.249156
≥500 USD $10.612413
≥1000 USD $10.01171
Inventory: 1101
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Technical
Operating Temperature 0°C~85°C
Packaging Bulk
Published 2012
Series P
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Standard
HTS Code 8536.50.70.00
Current Rating (Amps) 20A AC
Orientation Straight
Current Rating 20A
Termination Style Screw Terminal
Voltage - Rated AC 125V
Body Breadth 15.29 mm
Actuator Type Round, Plunger, Metal
Circuit SPST
Switch Function On-Off
Panel Cutout Dimensions Circular - 12.70mm Dia
Color - Actuator/Cap Silver
Max Voltage Rating (AC) 250V
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Illumination Type Illuminated
Contact (AC) Max Rating R Load 20A@125VAC
Hole Diameter 12.7 mm
Operating Force-Max 22.24 N
Dimensions
Length 28.6mm
Width 15.3mm
Body Height 24.94mm
Actuator Length 7.18mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
