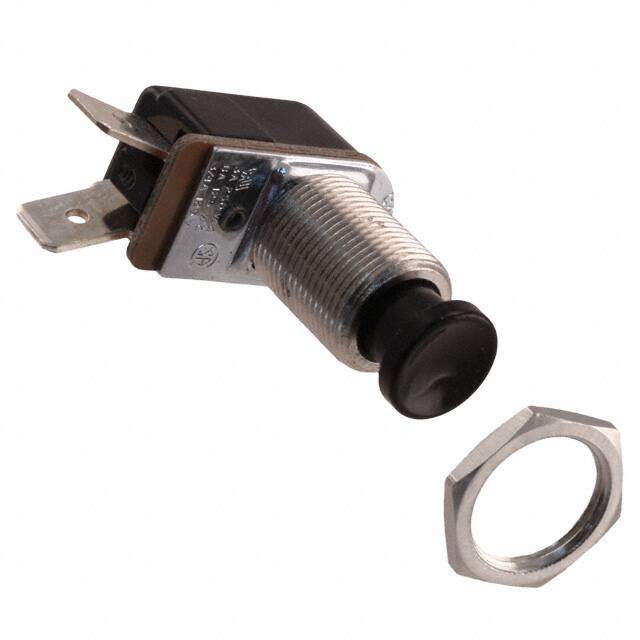

P27B-BL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 6A 125V
PDF
/
Buying Options
Total Price: USD $5.04
Unit Price: USD $5.035014
≥1 USD $5.035014
≥10 USD $4.750015
≥100 USD $4.481142
≥500 USD $4.227498
≥1000 USD $3.988203
Inventory: 8858
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Actuator Material Nylon
Technical
Operating Temperature 0°C~85°C
Packaging Bulk
Published 2003
Series P27
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Type Standard
Voltage - Rated 125V
HTS Code 8536.50.70.00
Current Rating (Amps) 6A AC
Orientation Straight
Current Rating 6A
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Body Length or Diameter 30.04mm
Body Breadth 13.3 mm
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 12.70mm Dia
Color - Actuator/Cap Black
Max Voltage Rating (AC) 250V
Electrical Life 25,000 Cycles
Throw Configuration SPST
Mechanical Life 100,000 Cycles
Contact Current Rating 6A
Illumination Type Illuminated
Contact Current(AC)-Max 6A
Hole Diameter 12.7 mm
Operating Force-Max 7.23 N
Contact Voltage Rating (AC) 125V
Dimensions
Body Height 13.76mm
Actuator Length 6.35mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
