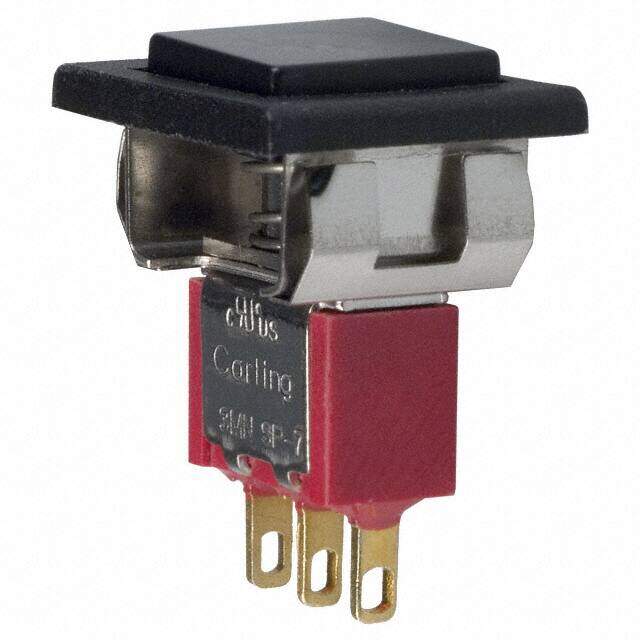

3MN-SP7-AP2/22-M1GE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 120V
PDF
/
Inventory: 6714
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Body Height 8.8mm
Width 6.6mm
Length 12.7mm
Technical
Contact Voltage(AC)-Max 120V
Contact Current(AC)-Max 1A
Electrical Life 50,000 Cycles
Contact Voltage(DC)-Max 28V
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 1A
Color - Actuator/Cap Black
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Switch Function On-Mom
Circuit SPDT
Actuator Type Square, Button
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 1A
Orientation Vertical
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 28V
HTS Code 8536.50.90.31
Terminal Finish Gold (Au)
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 3MN
Published 2005
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Mounting Type Panel Mount, Snap-In
Mount Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 10 Weeks
